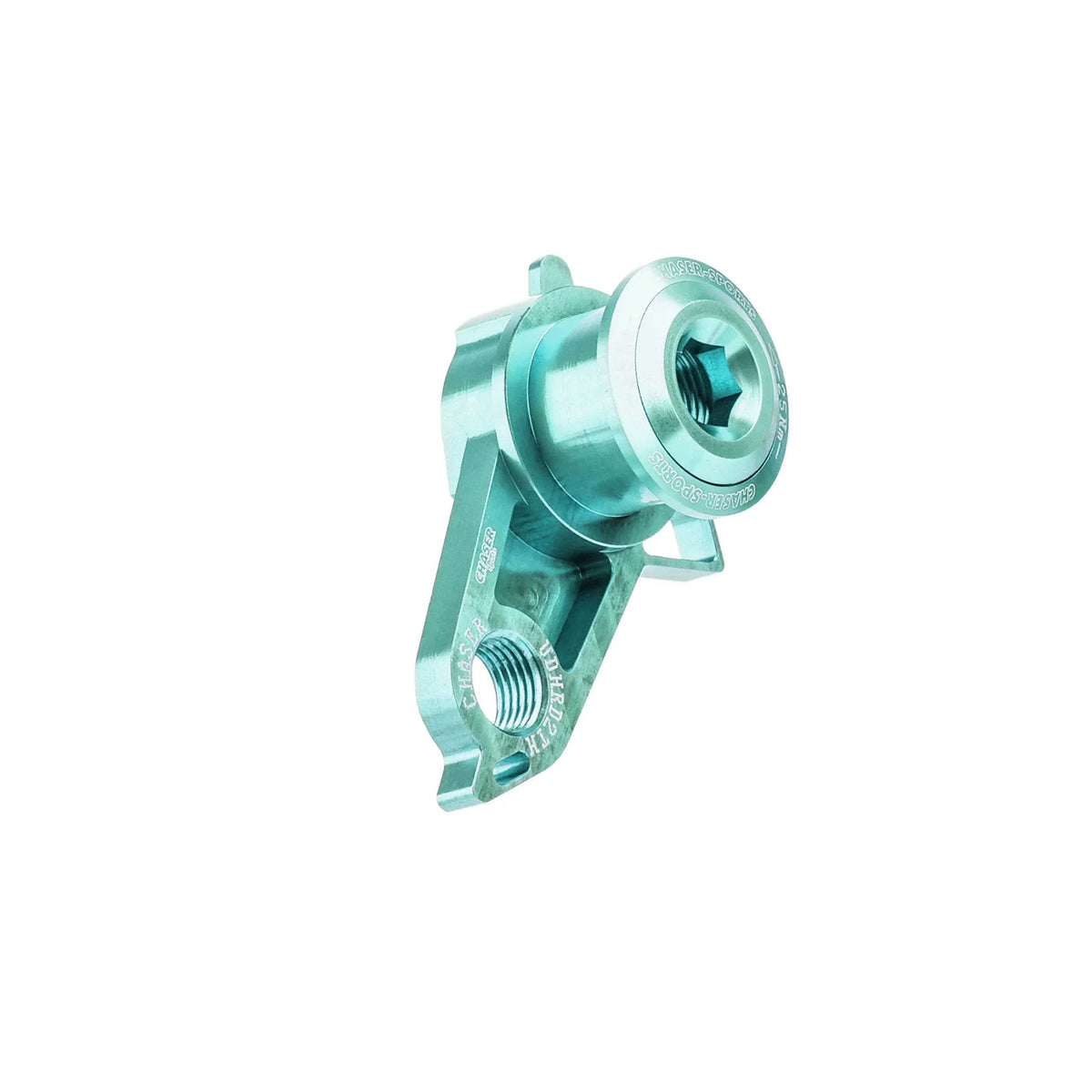

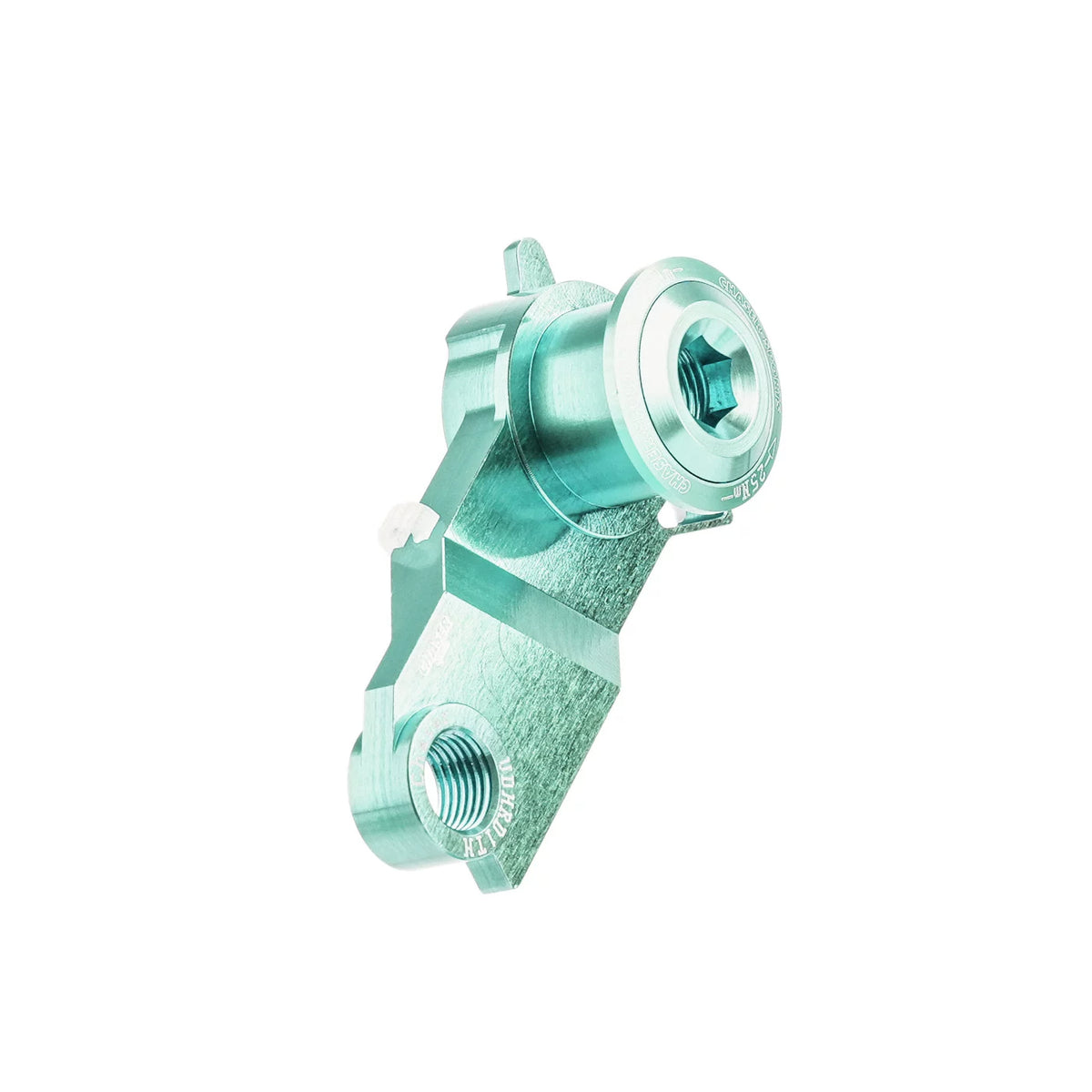

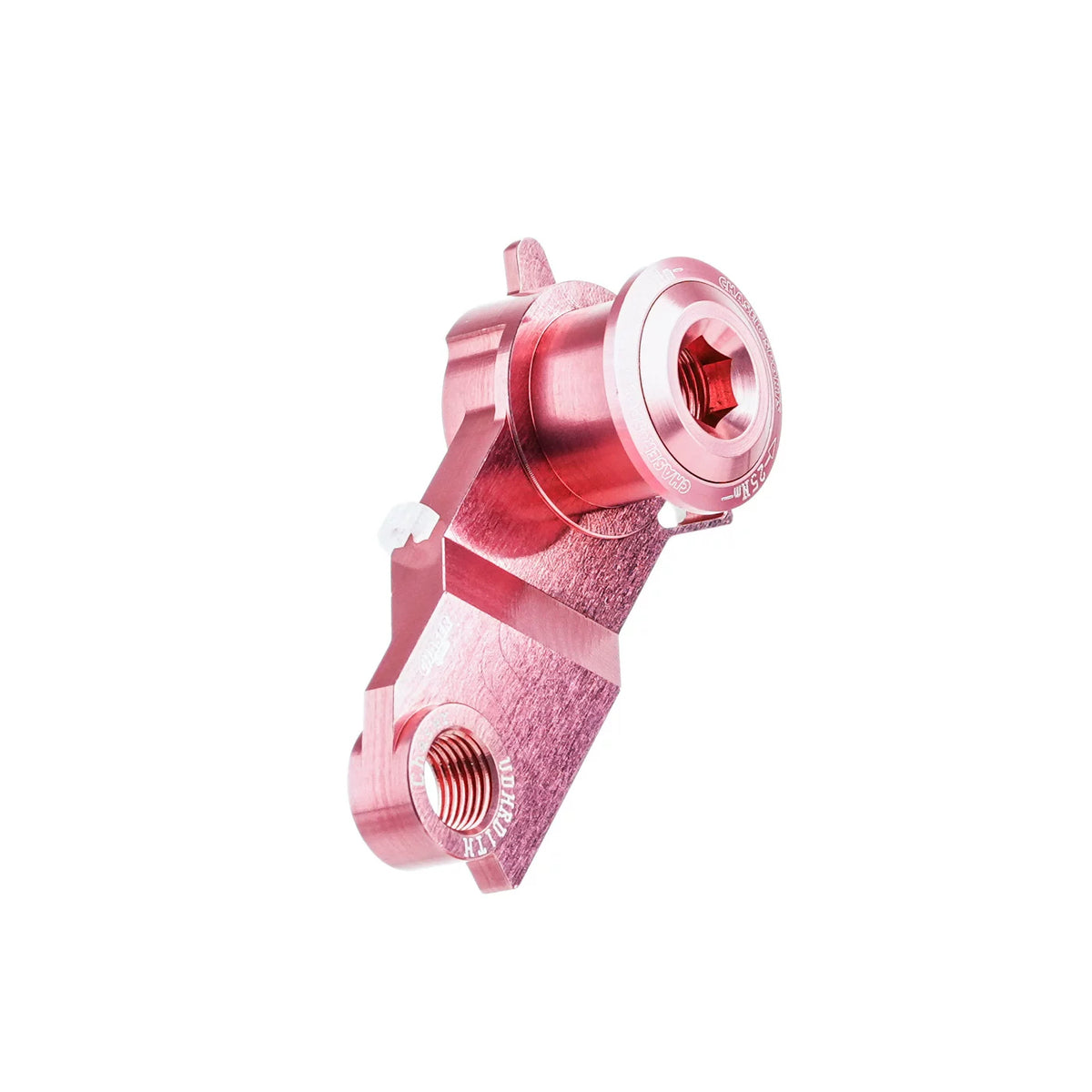

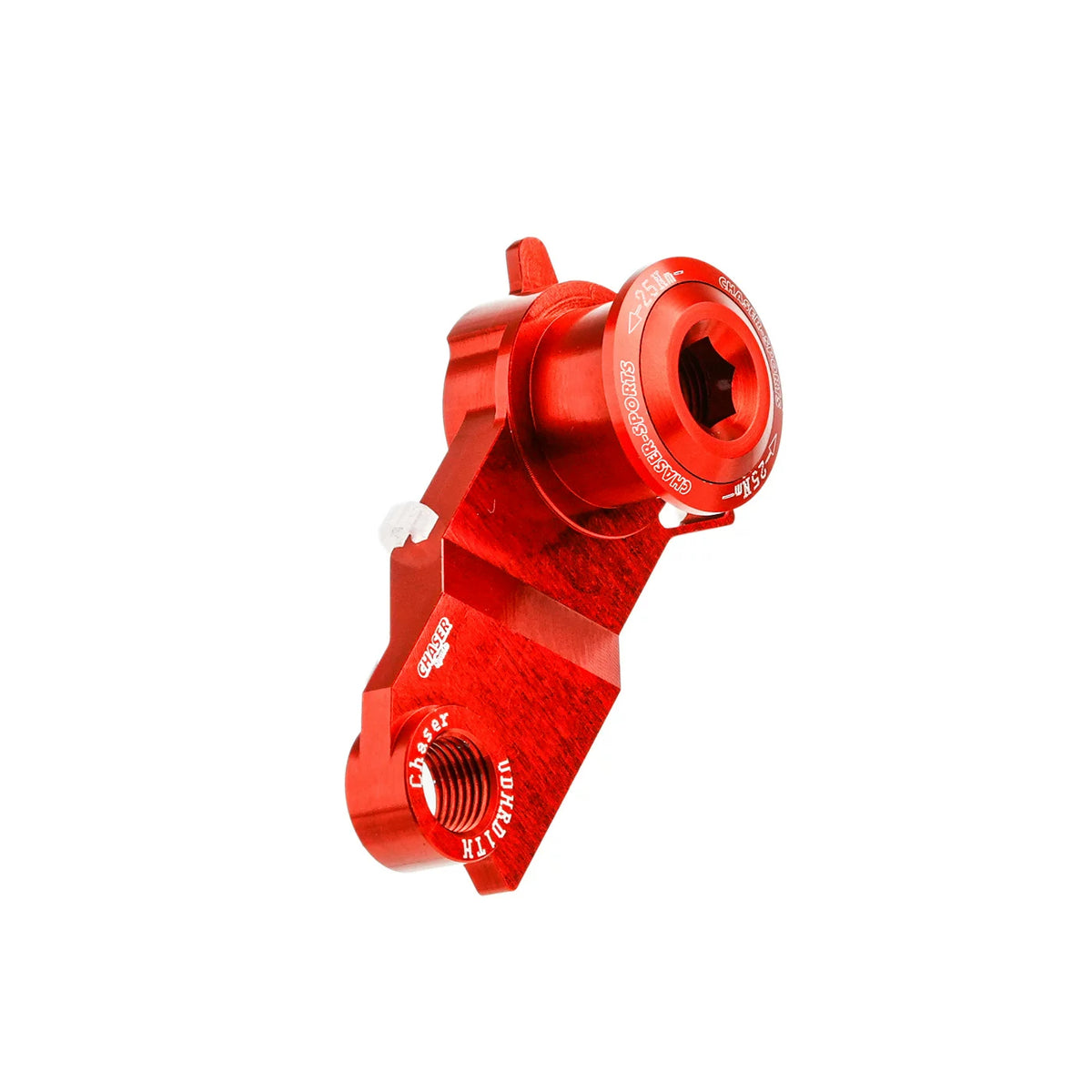

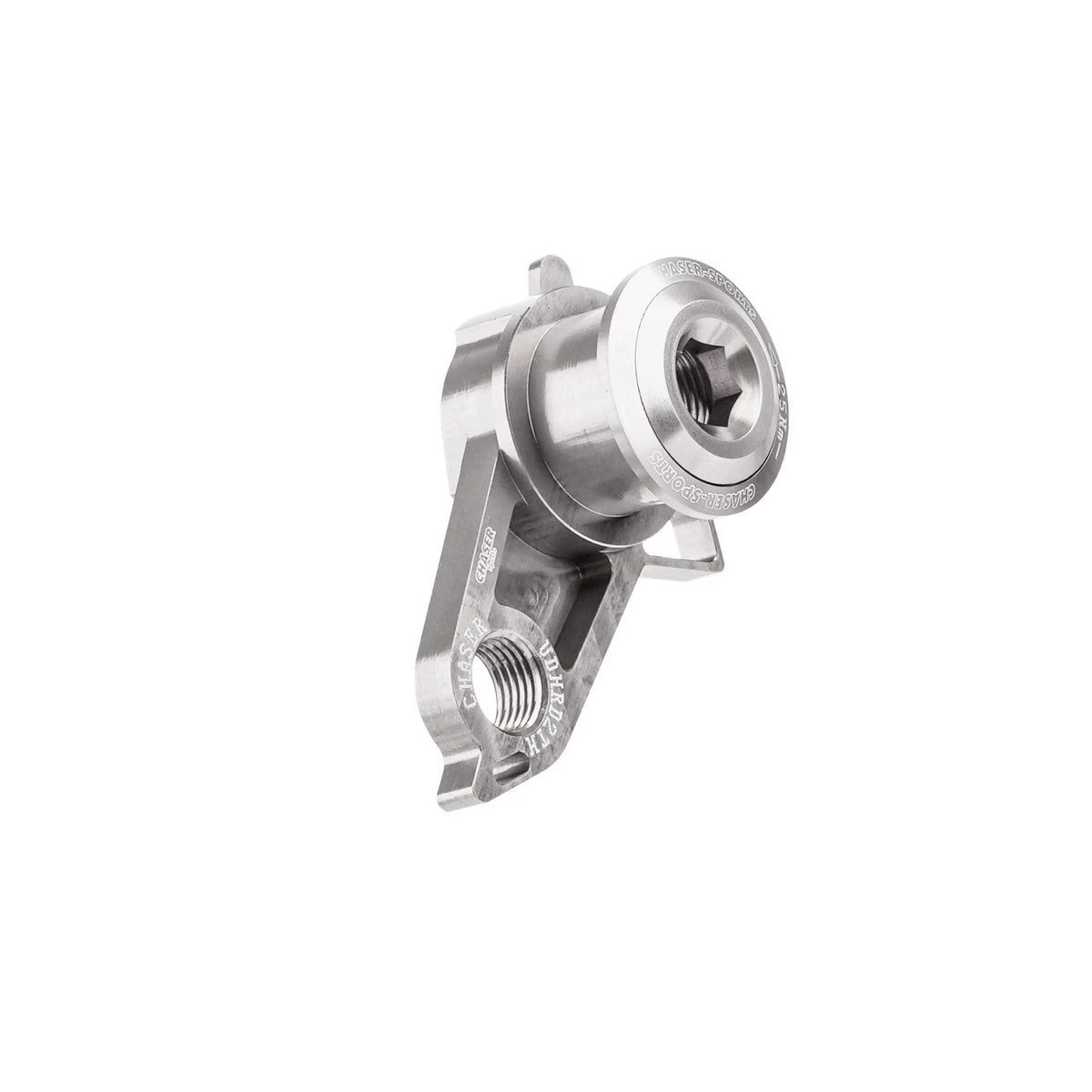

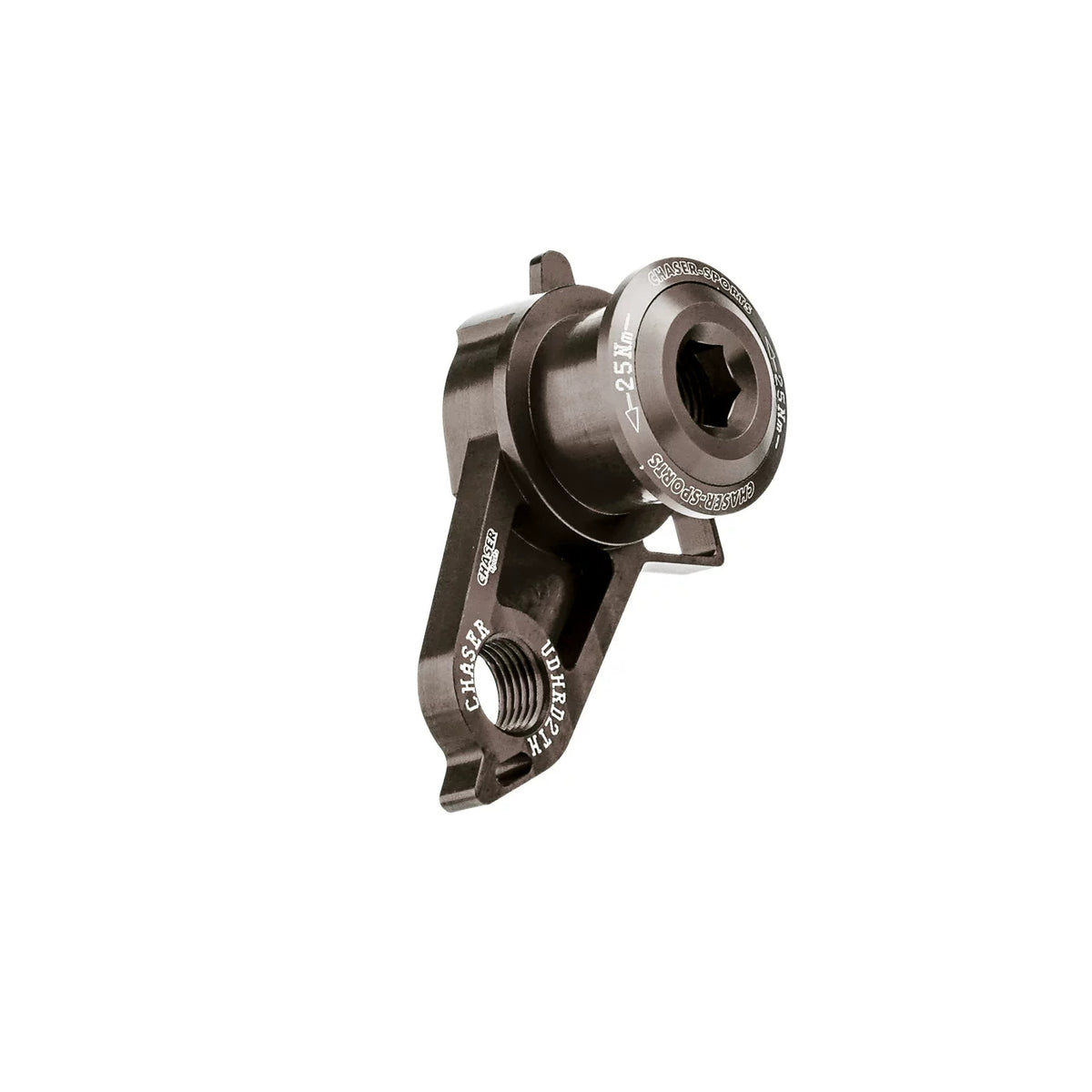

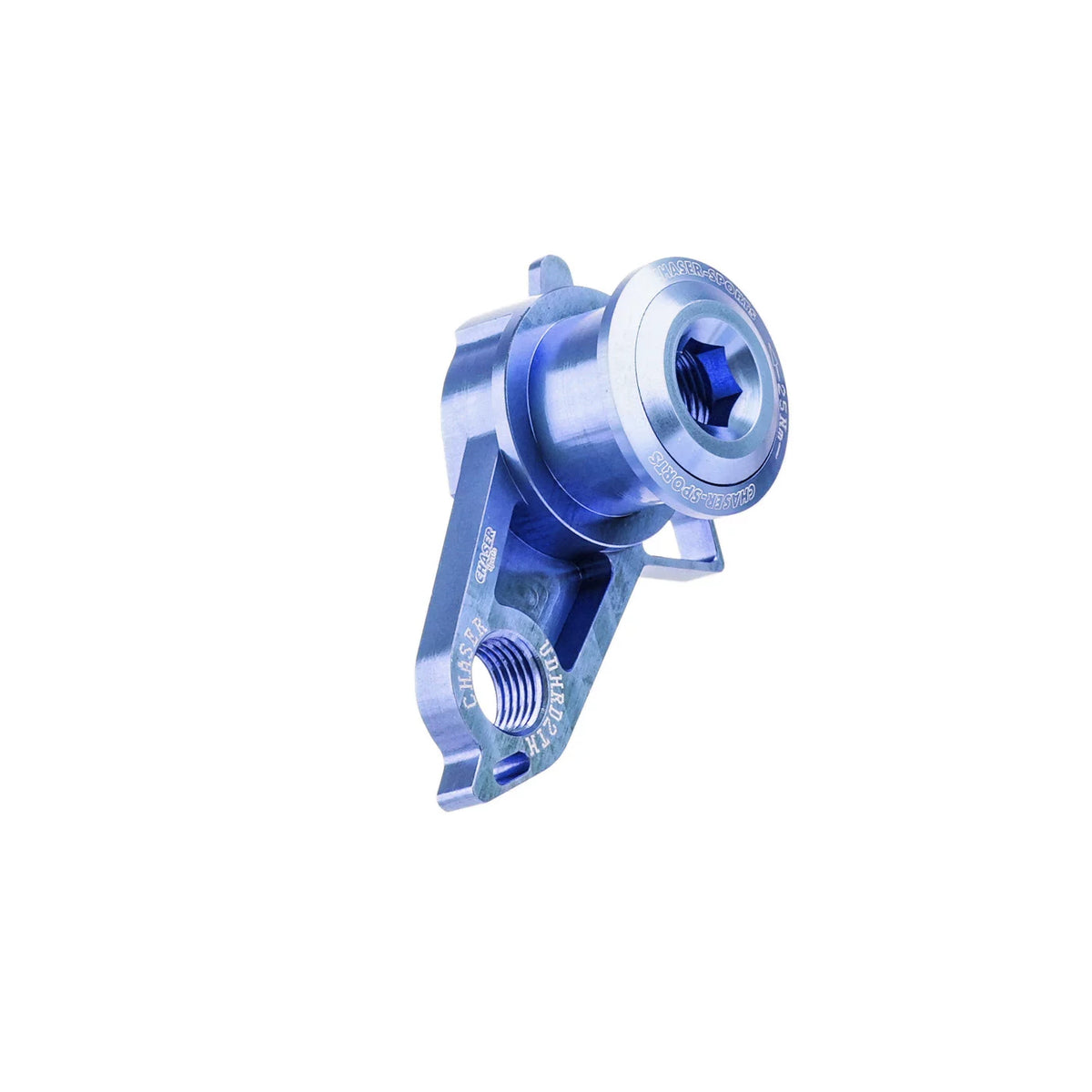

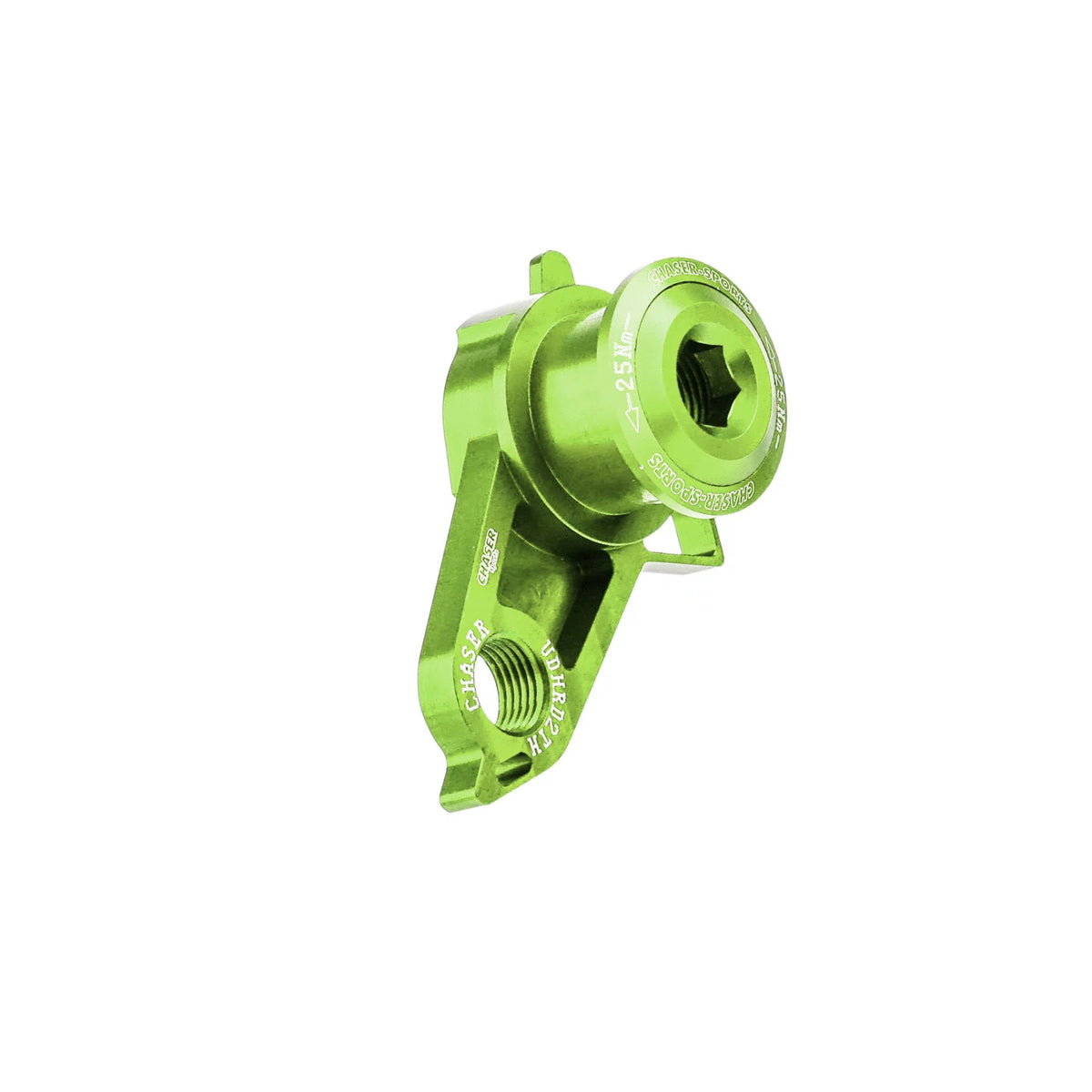

Giant TCR / Propel Direct Mount Derailleur Hanger | Shimano R-Series & SRAM | Defy Revolt Langma
Upgrade your Giant road bike with a precision CNC-machined Direct Mount Derailleur Hanger designed for selected Giant TCR, Propel, Defy, Revolt and Liv Langma models.
Available in multiple fitment versions for different Giant frame generations, including Shimano Direct Mount and SRAM-compatible configurations.
FEATURES
• Precision CNC-machined construction
• Lightweight and high-strength design
• Direct-mount configuration for compatible rear derailleurs
• Multiple versions for different Giant frame generations
• Available in multiple anodized colors
• Designed for precise derailleur alignment and reliable shifting
COMPATIBILITY

GNTRD 1TH
2020:
Giant Defy / TCR / Propel Series
Liv Langma Series Disc
2021:
Giant Defy / Revolt / Propel Series
Liv Langma Series Disc
2022:
Giant Defy / Revolt / Propel Series
Liv EnviLiv Series Disc
2023:
Giant Defy Series Disc
GNTRD 2TH
2022:
Giant TCR Series
Liv Langma Series Disc
2023:
Giant TCR / Propel Series
Liv Langma Series Disc
2024:
Giant Defy / TCR / Propel Series
Liv Langma Series Disc
2025:
Giant Defy / TCR / Propel Series
Liv Langma Series Disc
2026:
Giant TCR Series Disc

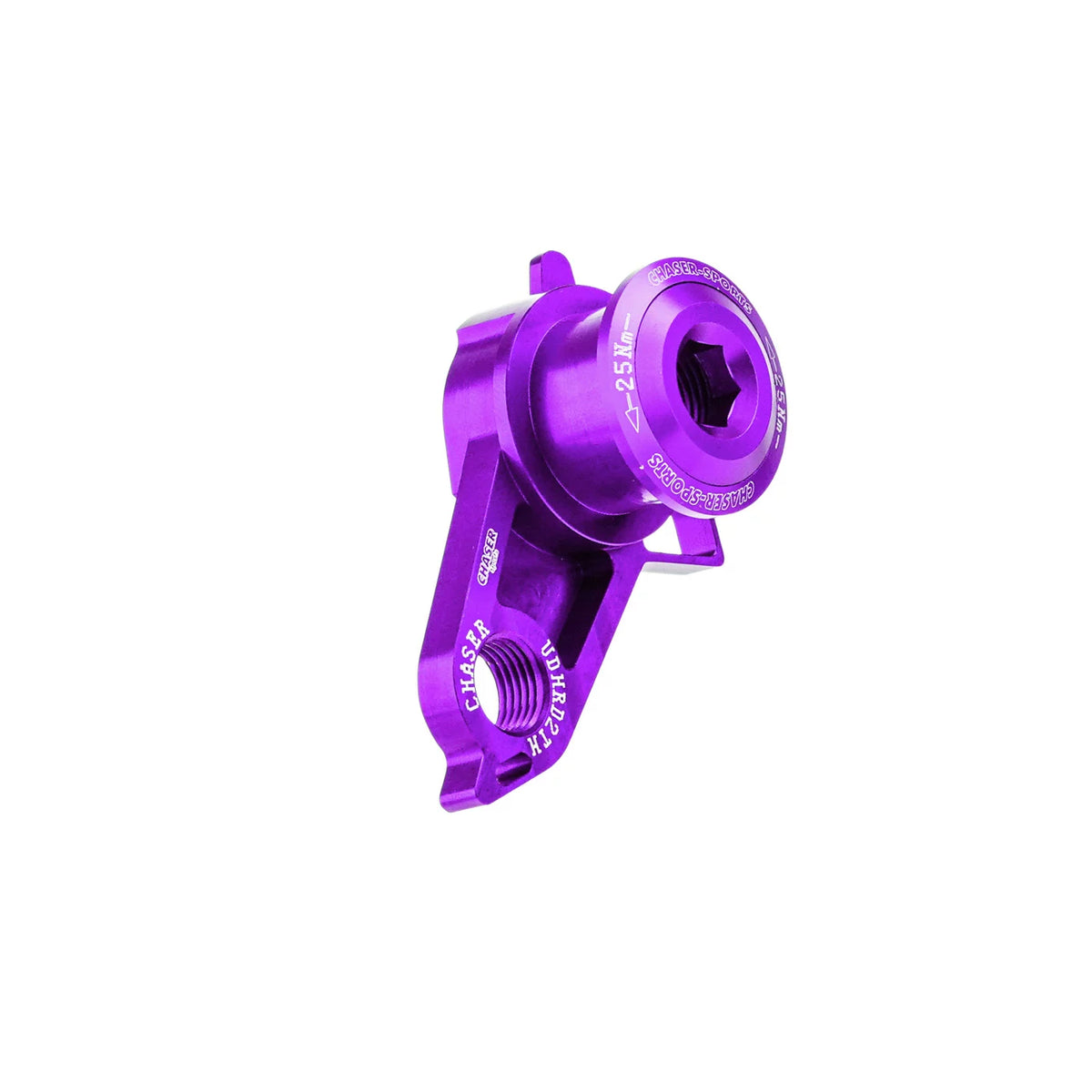

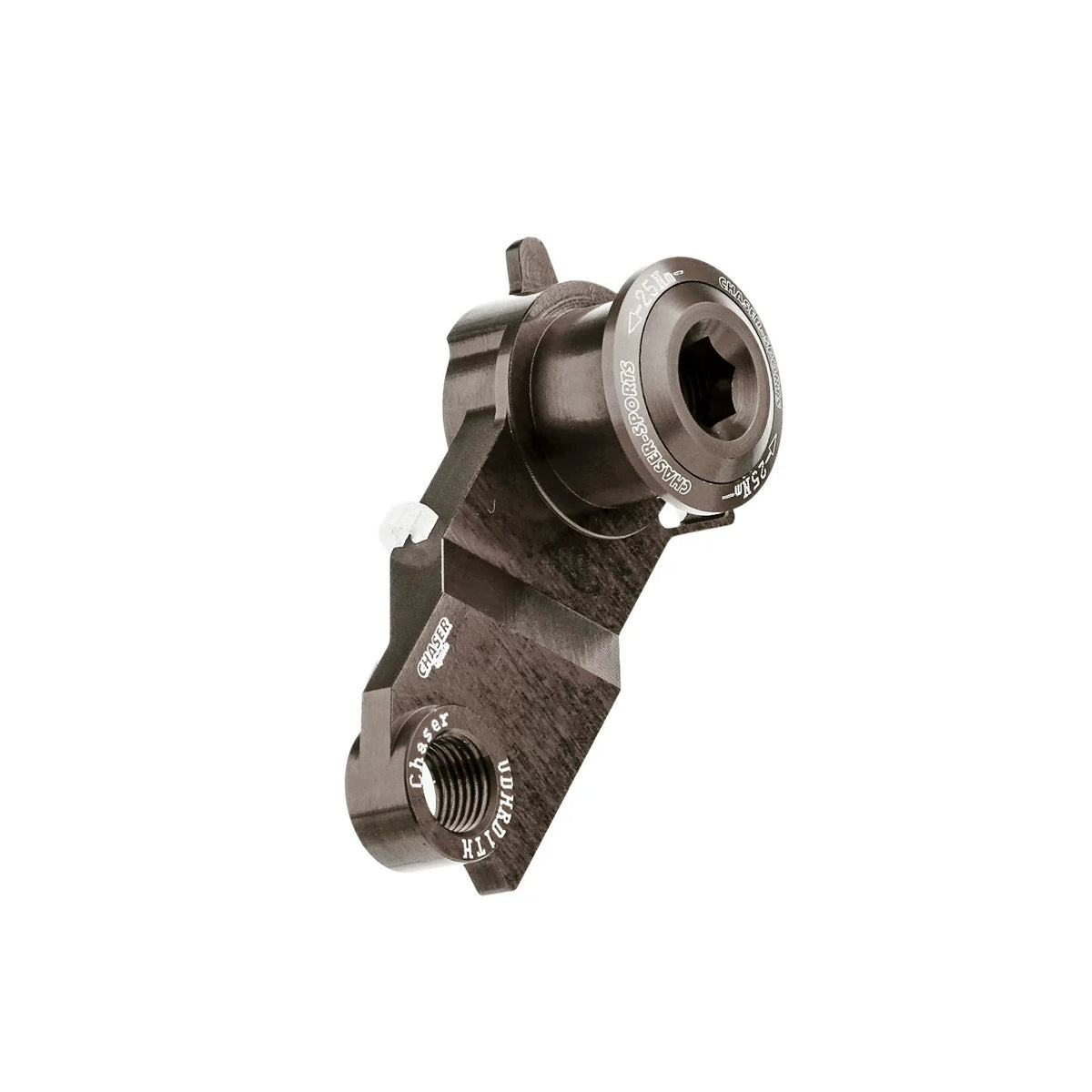

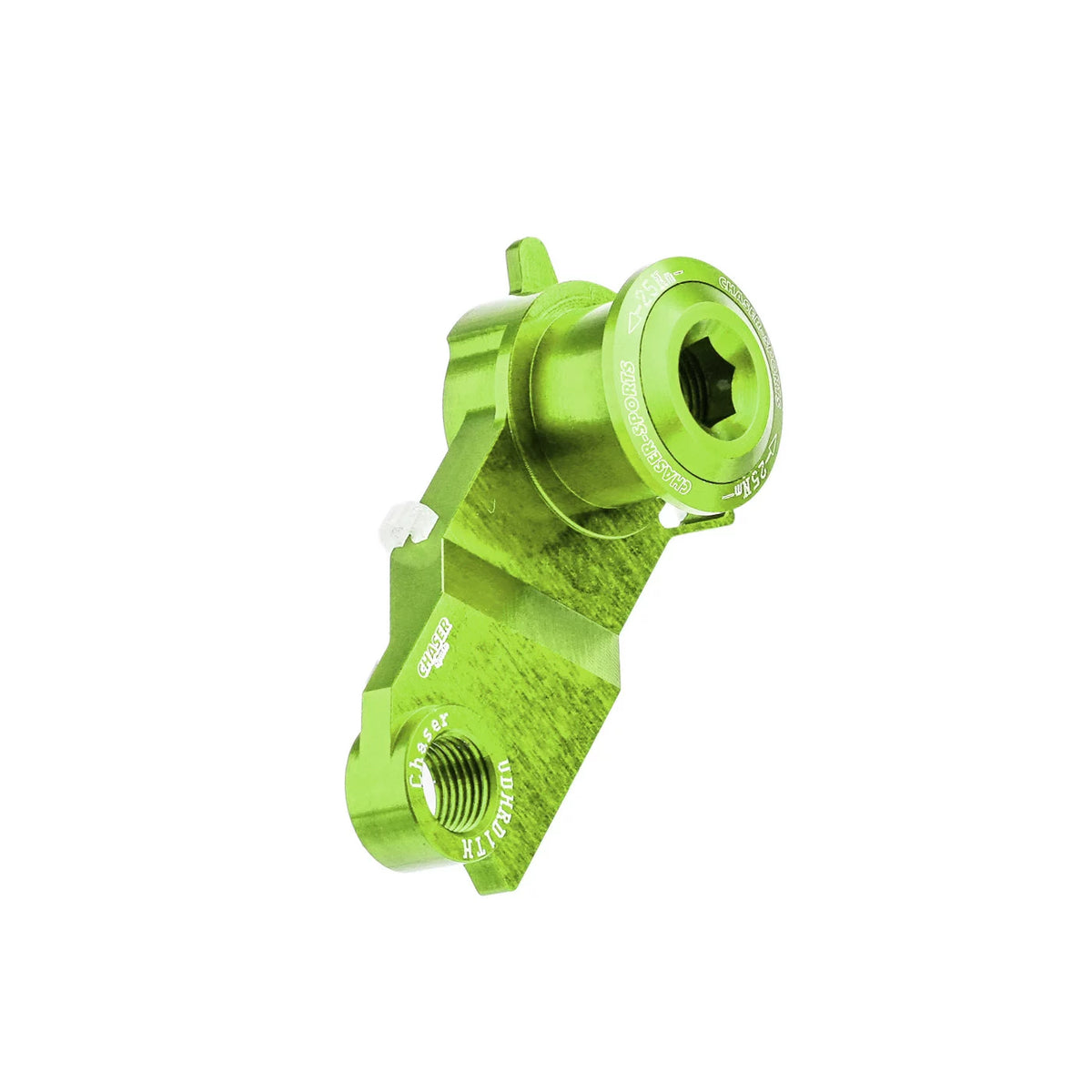

UDHRD 1TH
2026:
Giant Propel Series Disc
SRAM UNIVERSAL VERSION
For SRAM-compatible applications.
Please select the correct version according to your bicycle model, model year and rear derailleur configuration.

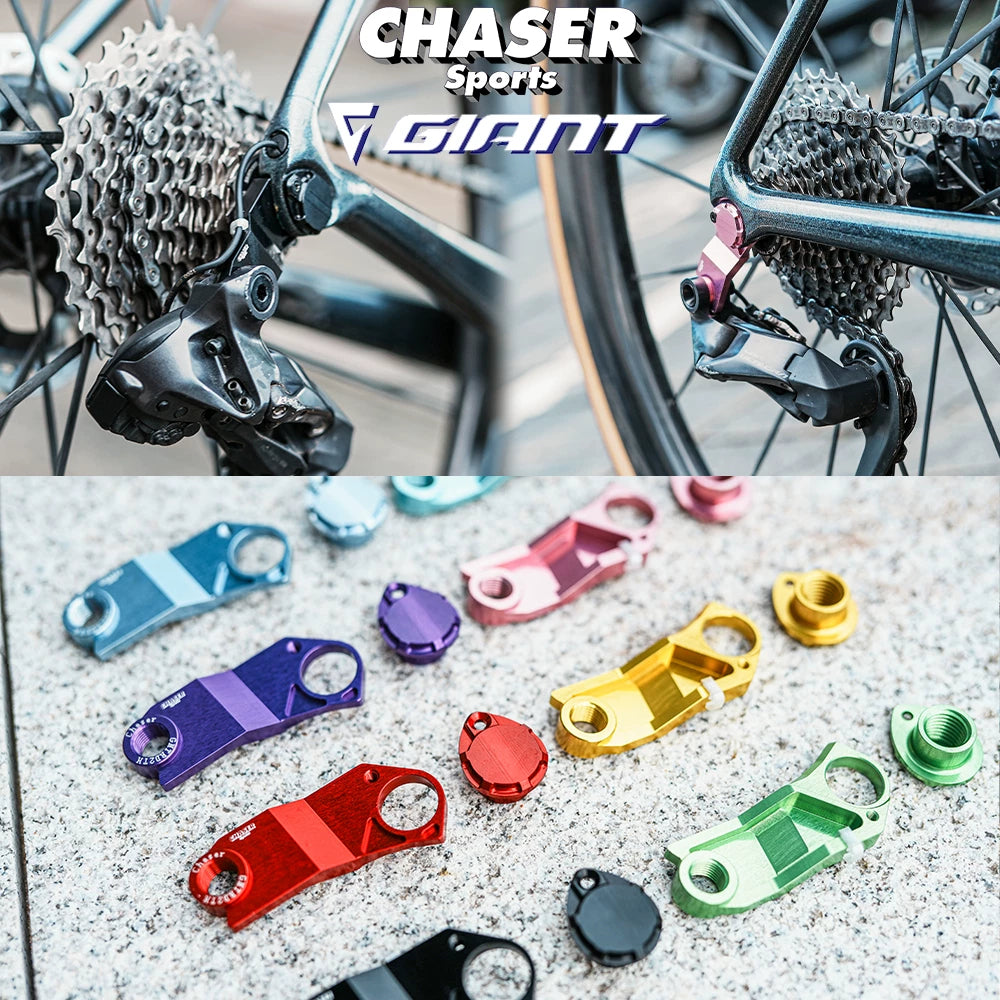

AVAILABLE COLORS
Black
Silver
Gold
Red
Blue
Cyan
Green
Purple
Pink
IMPORTANT FITMENT NOTICE
Giant has used different derailleur hanger designs across different models, model years and production batches.
Please confirm your bike model, model year and rear derailleur type before ordering.
If you are unsure which version you need, please contact us with:
1. Bike model
2. Model year
3. Rear derailleur model
4. A clear photo of your original derailleur hanger
We can help you confirm the correct version before ordering.
Do not force installation if the hanger does not match your original frame interface.
Compatibility Check: Due to the complexity of original equipment manufacturer (OEM) parts' models and batches, there may be instances where this product is incompatible.
Upon receiving this product, please compare it with the OEM specifications to ensure compatibility before installation.
Torque Specifications: Install this product strictly according to the torque values specified in the OEM parts manual.Installation Issues: If you encounter any discrepancies with the OEM specifications or face difficulties at the initial stage of installation, stop immediately and contact customer service for assistance with returns or exchanges.
No Forced Installation: Do not force installation under any circumstances.Liability: Any damages resulting from forced installation or unauthorized modifications of this product (or its components) will be the sole responsibility of the buyer.
All products are photographed to accurately represent the colors you will see upon receipt.
Due to differences in lighting, angles, or screen settings, slight color variations may occur.
The actual product should be considered the standard.For "colored" and "blue" products, the coloring process may result in uneven color distribution, making each product unique.
| S-PARTS Common Torque Reference Table for Bicycle Series | ||||||
| Ingredient | Component Name | Screw Name | Reference Torque | Anti-seize Usage | Medium-strength Threadlocker Usage | Special Requirements Remarks |
| Frame System | Handlebar Assembly | M4 Stem Fixing Screws | 4NM | Recommended | Consider with Caution | For special structure handlebar assemblies, please refer to the original manufacturer's recommended torque specifications. |
| M5 Stem Fixing Screws | 5NM | Recommended | Consider with Caution | |||
| M6 Stem Fixing Screws | 6-8NM | Recommended | Consider with Caution | |||
| M7 Handlebar Fixing Screws (Brompton) | 8-10NM | Recommended | Consider with Caution | |||
| M8 Stem Fixing Screws (BMX) | 8-10NM | Recommended | Consider with Caution | |||
| Headset | Headset Preload Screws (including M5/M6) | 4-6NM | Recommended | Not Recommended | ||
| Frame/Fork | M3 Fork Hose Clamp Screws | 1-2NM | Recommended | Not Recommended | For special structure seatpost clamps, please refer to the original manufacturer's recommended torque specifications. | |
| Water Bottle Cage Screws | 4NMM | Recommended | Not Recommended | |||
| M4 Derailleur Hanger Fixing Screws | 3-4NM | Recommended | Consider with Caution | |||
| M5 Derailleur Hanger Fixing Screws | 4-5NM | Recommended | Consider with Caution | |||
| M5 Front and Rear Rack Fixing Screws | 6-7NM | Recommended | Consider with Caution | |||
| M5 Seatpost Clamp Screw (Standard Clamp Design) | 6-7NM | Recommended | Not Recommended | |||
| Seatpost | M5 Saddle Rail Clamp Screws | 6-7NM | Recommended | Not Recommended | ||
| M6 Saddle Rail Clamp Screws | 7-9NM | Recommended | Not Recommended | |||
| M7 Saddle Rail Clamp Screws | 8-10NM | Recommended | Not Recommended | |||
| M6/M7 Single-Bolt Saddle Rail Clamp Screws | 10-12NM | Recommended | Not Recommended | |||
| M8 Single-Bolt Saddle Rail Clamp Screws (Brompton) | 12-14NM | Recommended | Not Recommended | |||
| Wheelset | M6 Quick-Release Wheelset Locking Screws | 6-8NM | Recommended | Not Recommended | ||
| M10 BMX Wheelset Locking Screws | Recommended | Not Recommended | ||||
| M14 BMX Wheelset Screws | Recommended | Not Recommended | ||||
| M9 Wheelset Locking Nuts | 12-14NM | Recommended | Not Recommended | |||
| M10 Wheelset Locking Nuts | 14-16NM | Recommended | Not Recommended | |||
| M12 Thru-Axle Bolt | 10-14NM | Recommended | Not Recommended | |||
| M14 Thru-Axle Bolt | 12-16NM | Recommended | Not Recommended | |||
| Brake System | Disc Rotor | Six-Bolt Disc Rotor Screws | 5-7NM | Consider with Caution | Recommended | Do not use anti-seize compounds or liquid thread lockers on screws related to the brake hydraulic system to avoid contaminating the hydraulic lines. |
| Center Lock Disc Rotor | 40NM | Recommended | Not Recommended | |||
| Brake Lever | M5 Brake Lever Fixing Screws | 5-7NM | Recommended | Not Recommended | ||
| M6 Brake Lever Fixing Screws | 6-8NM | Recommended | Not Recommended | |||
| Road Bike Shifter Fixing Nuts | 6-8NM | Recommended | Not Recommended | |||
| Brake Lever Bleed Port Screws | 2-3NM | Not Recommended | Recommended | |||
| Disc Brake Caliper | M6 Mountain Bike Caliper Fixing Screws | 9NM | Consider with Caution | Recommended | ||
| M5 Flat Mount Caliper Fixing Screws | 7NM | Consider with Caution | Not Recommended | |||
| M8 Hose Compression Fitting Screws | 6-7NM | Not Recommended | Not Recommended | |||
| M6 Caliper Body Screws | 12NM | Not Recommended | Not Recommended | |||
| M7 Caliper Body Screws | 14NM | Not Recommended | Not Recommended | |||
| M8 Caliper Body Screws | 14NM | Not Recommended | Not Recommended | |||
| M6 Caliper Banjo Screws | 12NM | Not Recommended | Not Recommended | |||
| Caliper Bleed Screws | 5-6NM | Not Recommended | Not Recommended | |||
| Brake Pad Pin | 3NM | Not Recommended | Not Recommended | |||
| C-Brake Caliper | Single Pivot Caliper Fixing Nut | 8NM | Not Recommended | Recommended | ||
| Dual Pivot Caliper Fixing Screws | 6-8NM | Consider with Caution | Consider with Caution | |||
| Brake Pad Fixing Screw Set | 7NM | Consider with Caution | Consider with Caution | |||
| Brake Pad Stop Screws | 3NM | Not Recommended | Not Recommended | |||
| Caliper Release Lever Screws | 3NM | Not Recommended | Not Recommended | |||
| Cable Anchor Screws | 5-7NM | Recommended | Not Recommended | |||
| Drivetrain System | Shifter | Shifter Clamp Bolt | 4-6NM | Recommended | Not Recommended | Do not use anti-seize compounds or liquid thread lockers on screws related to the brake hydraulic system to avoid contaminating the hydraulic lines. |
| Shifter Integration Bolt | 4-6NM | Recommended | Not Recommended | |||
| Shifter Top Cap Bolt (Shimano) | 4NM | Recommended | Not Recommended | |||
| Front Derailleur | Direct Mount Front Derailleur Fixing Bolt | 6-7NM | Recommended | Not Recommended | ||
| Front Derailleur Clamp Bolt | 5-7NM | Recommended | Not Recommended | |||
| Front Derailleur Cable Adjusting Bolt | 5-7NM | Recommended | Not Recommended | |||
| Rear Derailleur | Rear Derailleur Pivot | 10-12NM | Recommended | Not Recommended | ||
| UDH System Rear Derailleur Pivot | 25NM | Recommended | Not Recommended | |||
| M4 Pulley Bolt | 3NM | Consider with Caution | Consider with Caution | |||
| M5 Pulley Bolt | 4NM | Consider with Caution | Consider with Caution | |||
| M3 Rear Derailleur Lock Cover Bolt (Shimano) | 1.5NM | Not Recommended | Not Recommended | |||
| Rear Derailleur Cable Adjusting Bolt | 5-7NM | Recommended | Not Recommended | |||
| Crankset | Chainring Double-Sided Bolt | 6-8NM | Consider with Caution | Consider with Caution | ||
| Single Chainring Bolt | 8NM | Consider with Caution | Consider with Caution | |||
| M5 Crank Arm Bolt (SRAM 3-bolt) | 7NM | Consider with Caution | Consider with Caution | |||
| M4 Crank Arm Bolt (SRAM 8-bolt) | 4-5NM | Consider with Caution | Consider with Caution | |||
| M6 Crank Arm Fixing Bolt (Shimano) | 12-14NM | Consider with Caution | Consider with Caution | |||
| Crank Arm Cap (Shimano) | 2-4NM | Not Recommended | Not Recommended | |||
| Crank Arm Fixing Bolt (DUB) | 54NM | Recommended | Not Recommended | |||
| Crank Arm Fixing Bolt (Rotor) | 30-35NM | Recommended | Not Recommended | |||
| Crank Arm Fixing Bolt (EE) | 52NM | Recommended | Not Recommended | |||
| M8 Square Taper Crank Bolt | 30NM | Recommended | Not Recommended | |||
| Pedals | Pedal Axle | 25NM | Recommended | Not Recommended | ||
| Road Cleat Fixing Bolt (3-bolt) | 6-8NM | Not Recommended | Recommended | |||
| MTB Cleat Fixing Bolt (2-bolt) | 8NM | Not Recommended | Recommended | |||
