Product Description

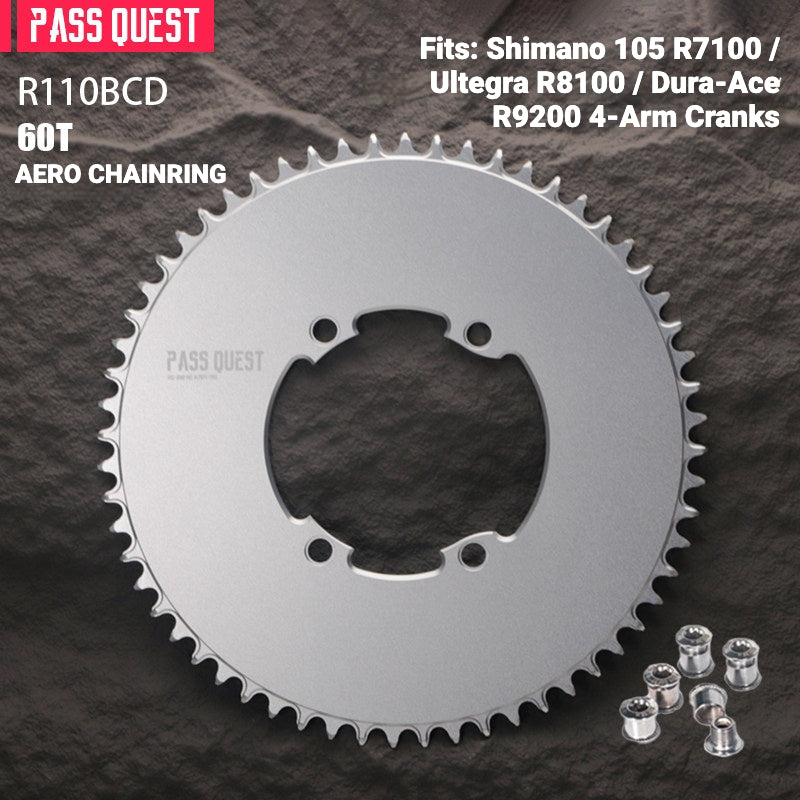

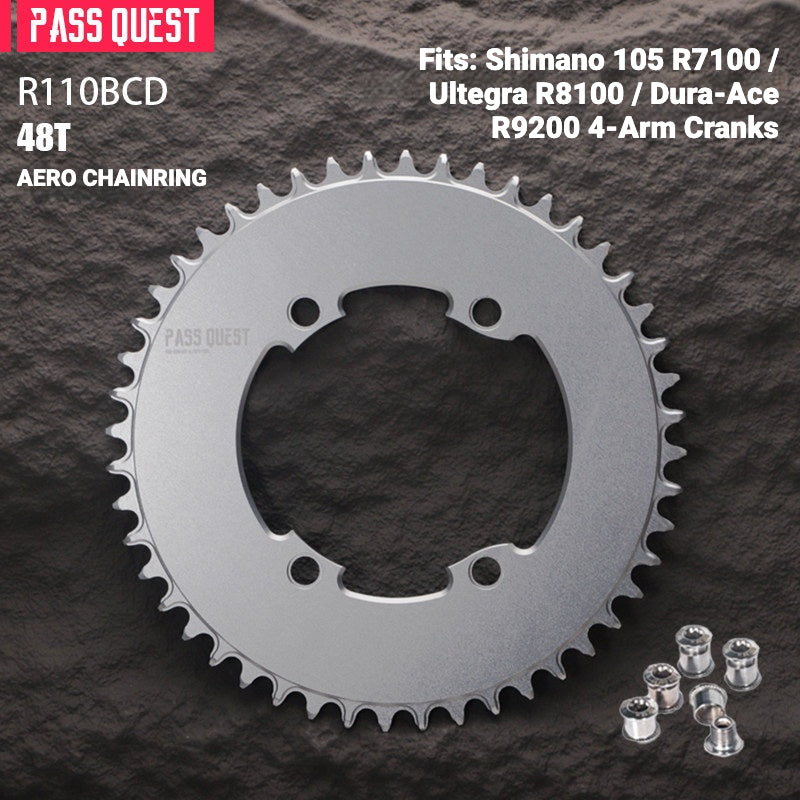

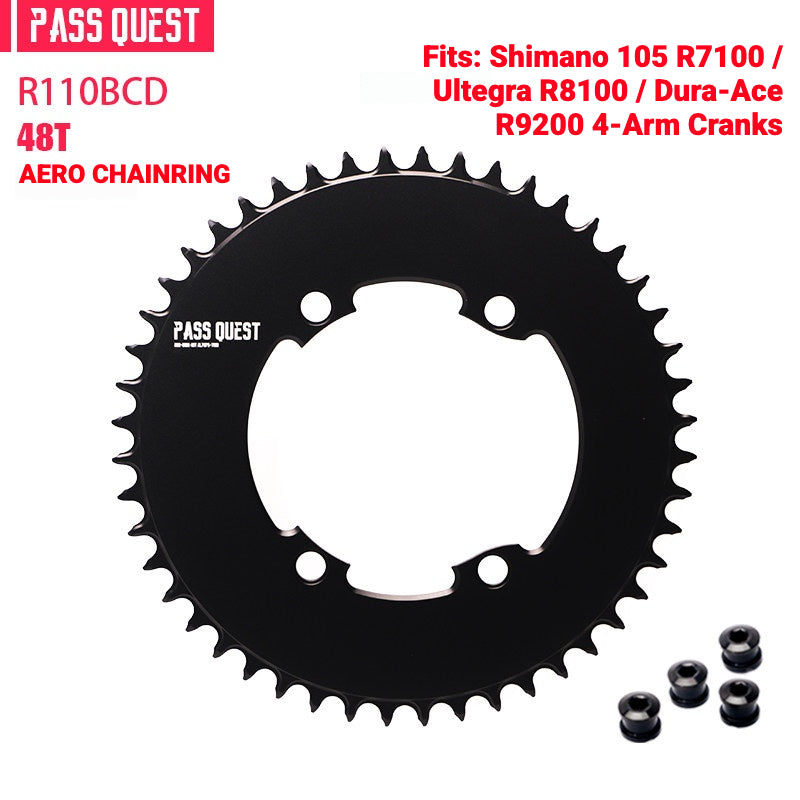

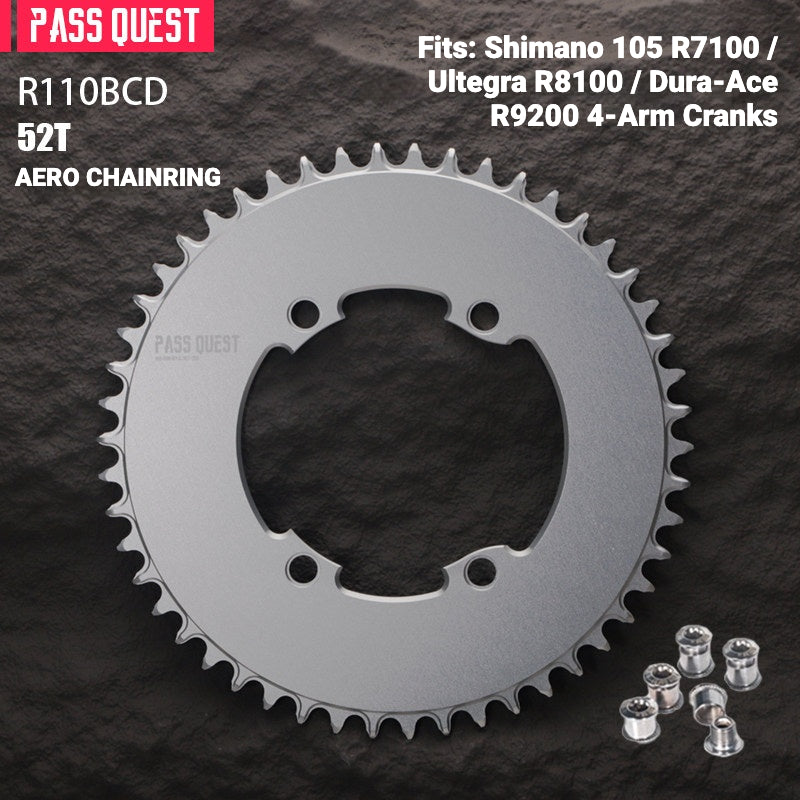

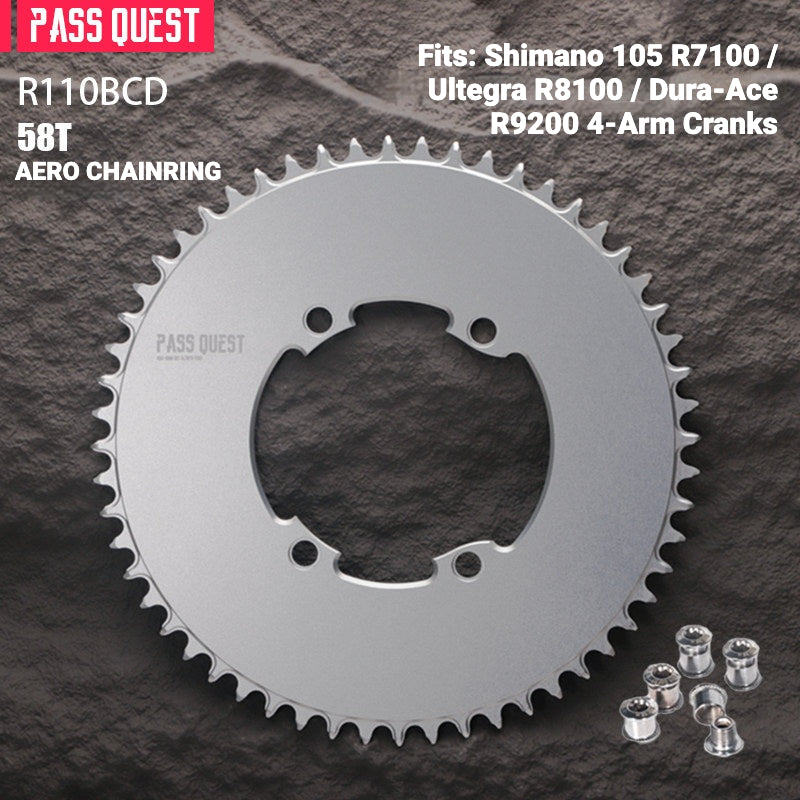

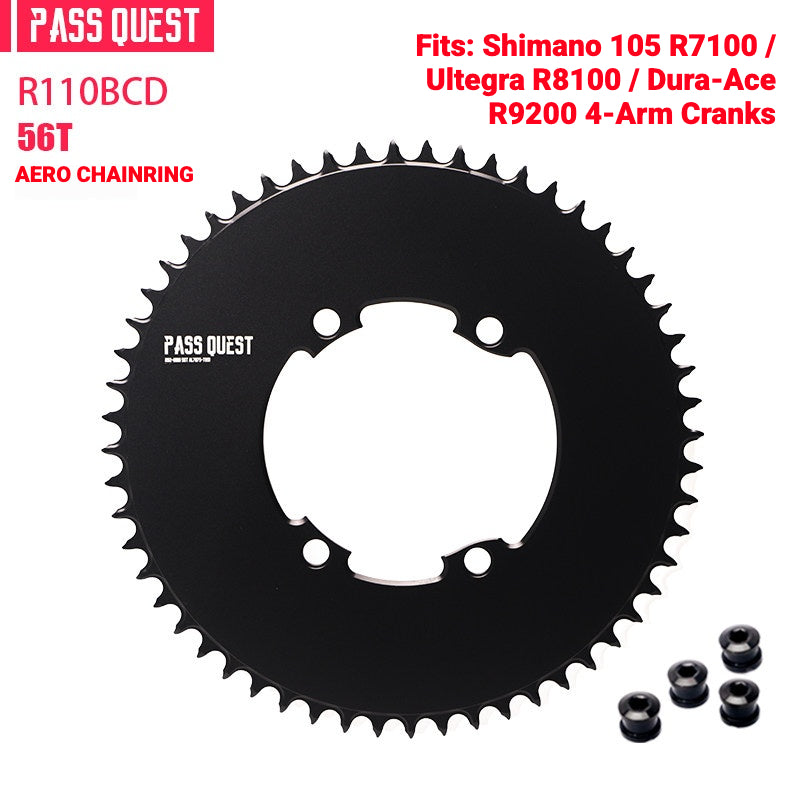

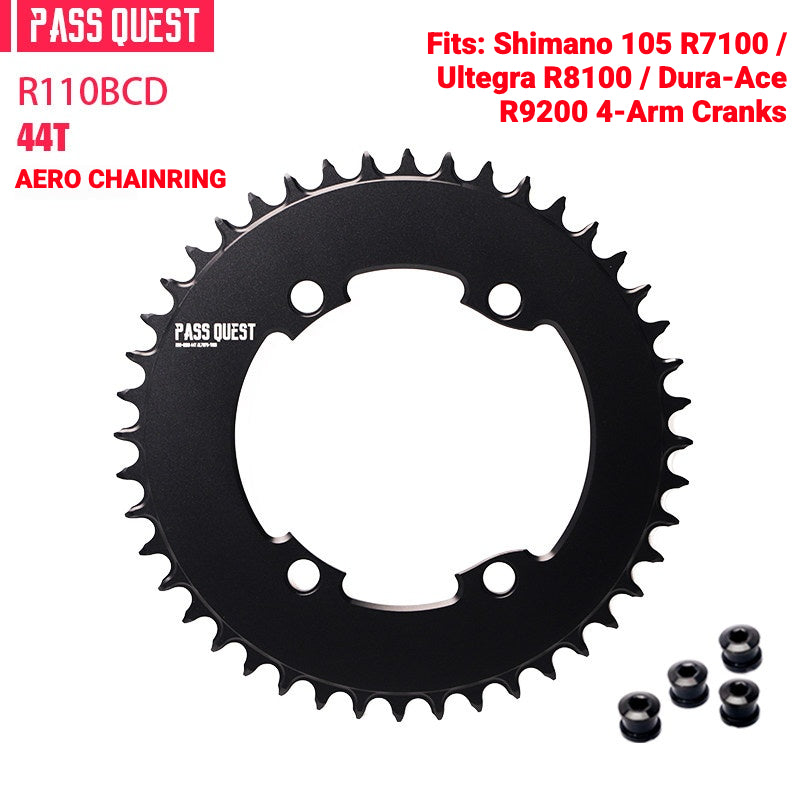

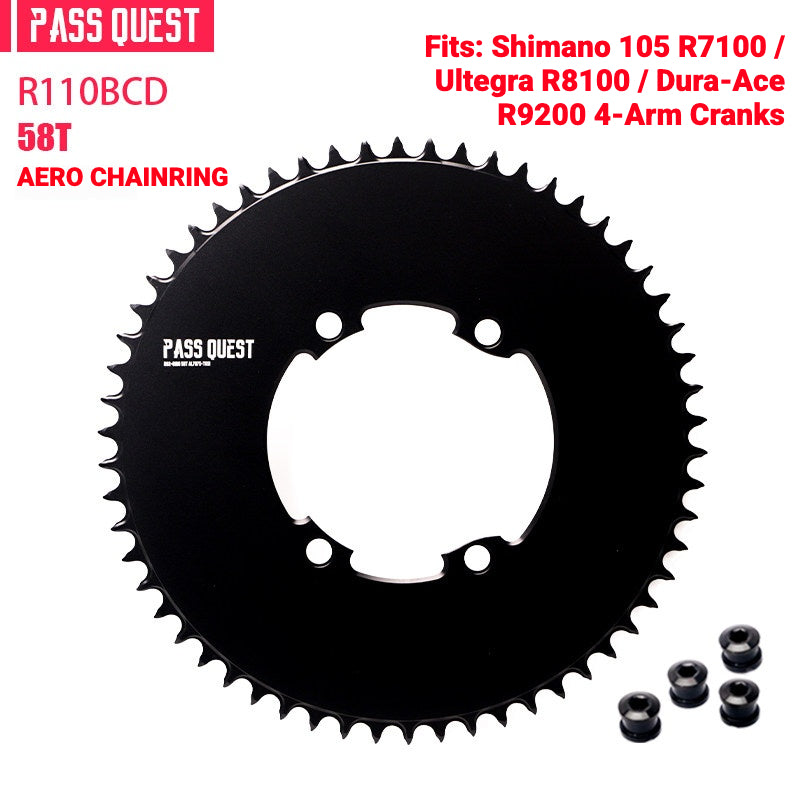

PASS QUEST 110BCD Full-Profile Narrow-Wide Road Chainring

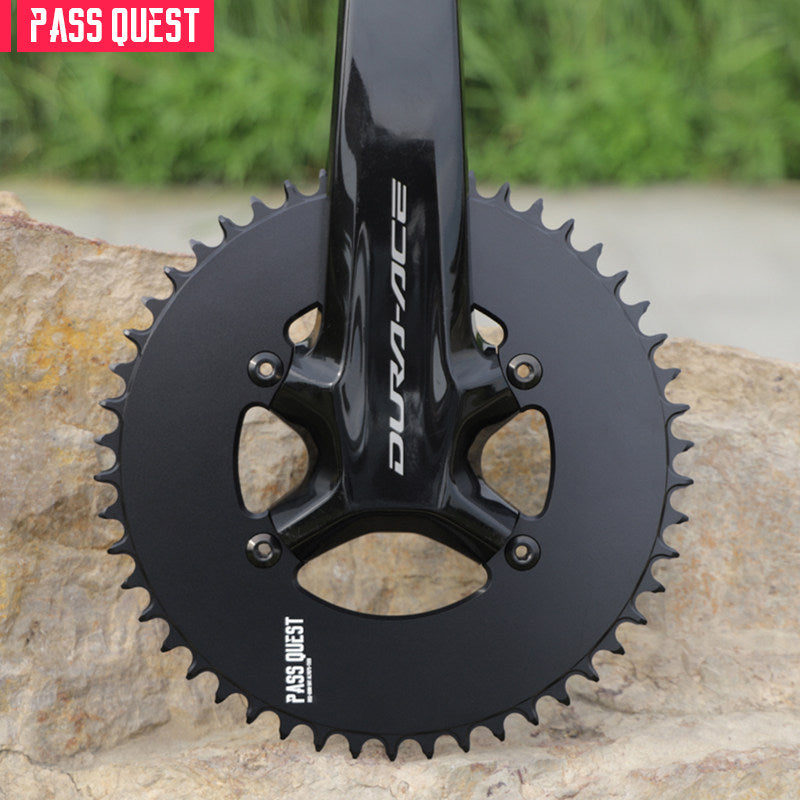

The PASS QUEST 110BCD Full-Profile Narrow-Wide Chainring is designed for compatible Shimano 4-arm road cranksets, including 105 R7100, Ultegra R8100 and Dura-Ace R9200.

CNC-machined from a solid 7075-T651 aluminum plate, the chainring uses a full-profile design with strategically machined and chamfered sections to balance rigidity, durability and weight.

Available from 44T to 60T, it is designed for riders looking for a larger 1x road chainring with a clean, integrated appearance.

Shimano R7100 / R8100 / R9200 Compatibility

Designed for compatible:

• Shimano 105 FC-R7100
• Shimano Ultegra FC-R8100
• Shimano Dura-Ace FC-R9200

The mounting profile is specifically designed around the newer-generation Shimano 4-arm crank shape.

Important Compatibility Notice

Shimano 110BCD 4-arm cranksets use different mounting profiles depending on generation.

FC-5800 / FC-6800
Earlier 4-arm design without the newer curved mounting profile.

FC-R7000 / FC-R8000 / FC-R9100
Different profile with a curved section at the upper-right mounting area.

FC-R7100 / FC-R8100 / FC-R9200
Newer profile with curved sections at both the upper-right and lower-right mounting areas.

This product is designed for the R7100 / R8100 / R9200 generation.

Please confirm your exact crank model before ordering. 110BCD alone does not guarantee compatibility.

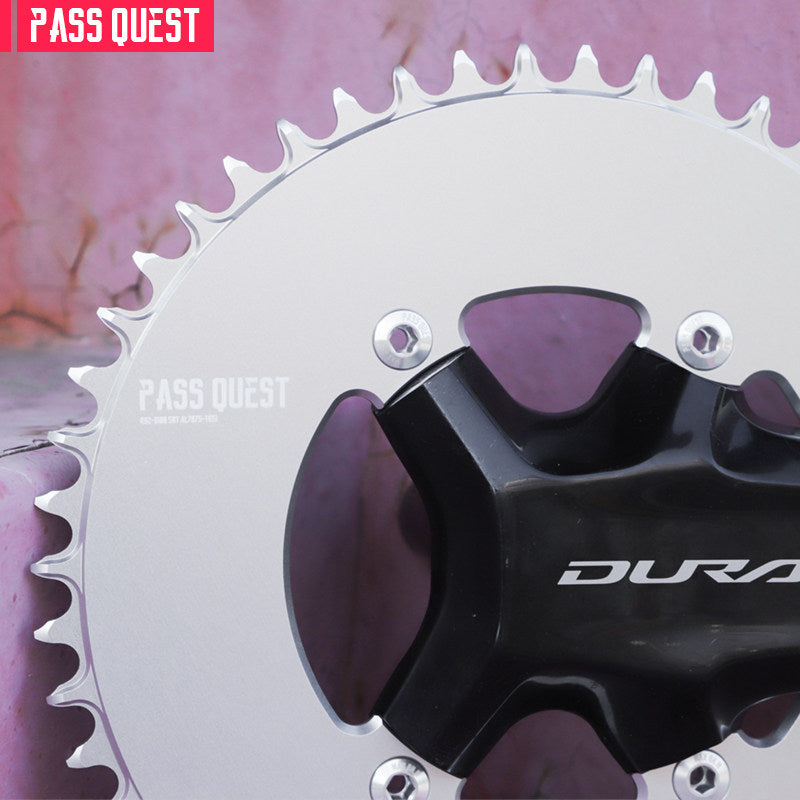

Full-Profile CNC Construction

Unlike a heavily open or skeletonized chainring, this version uses a full-profile design for a clean appearance and high structural rigidity.

The chainring is CNC-machined from a solid aluminum plate, with strategic machining on the rear and around selected areas to remove unnecessary material.

This provides:

• High rigidity
• Stable power transfer
• Clean full-profile appearance
• Optimized weight
• Durable construction

7075-T651 Aluminum Alloy

The chainring is CNC-machined from high-strength 7075-T651 aluminum alloy.

The material and structural design provide an excellent balance of:

• Strength
• Rigidity
• Low weight
• Wear resistance
• Long-term durability

The triangular and textured structural sections are designed to maintain stiffness under pedaling load for direct power transfer.

Narrow-Wide Tooth Design

The narrow-wide tooth profile provides improved engagement between the chain and chainring.

This helps reduce the risk of chain drop caused by road vibration, chain movement and aggressive pedaling.

Designed for 1x road drivetrain setups where reliable chain retention is especially important.

Refined Tooth Profile

PASS QUEST developed the tooth profile through repeated testing and optimization.

The design focuses on:

• Smooth chain engagement
• Tooth durability
• Chain pin positioning
• Chain groove alignment
• Stable chain retention

The goal is to provide smooth drivetrain operation while maintaining reliable chain engagement.

Lightweight CNC Optimization

Weight reduction is achieved through carefully positioned machining rather than simply removing large amounts of material.

Strategic machining and chamfering help maintain chainring rigidity while reducing unnecessary mass.

The result is a full-profile chainring that balances:

Rigidity · Weight · Durability · Appearance

Recessed Mounting Structure

The recessed mounting interface is designed to increase the effective contact area between the chainring and crank.

This helps provide:

• Accurate positioning
• Secure installation
• Cleaner fit
• Reduced fitment variation

Specifications

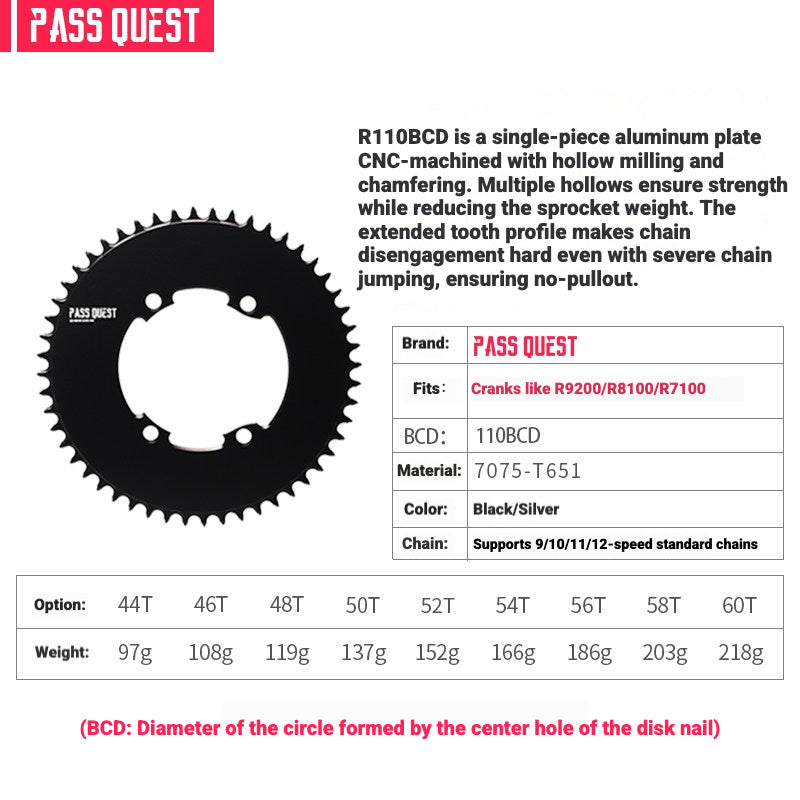

Size & Weight

Weights are approximate and may vary slightly due to manufacturing and measurement tolerances.

Available Sizes

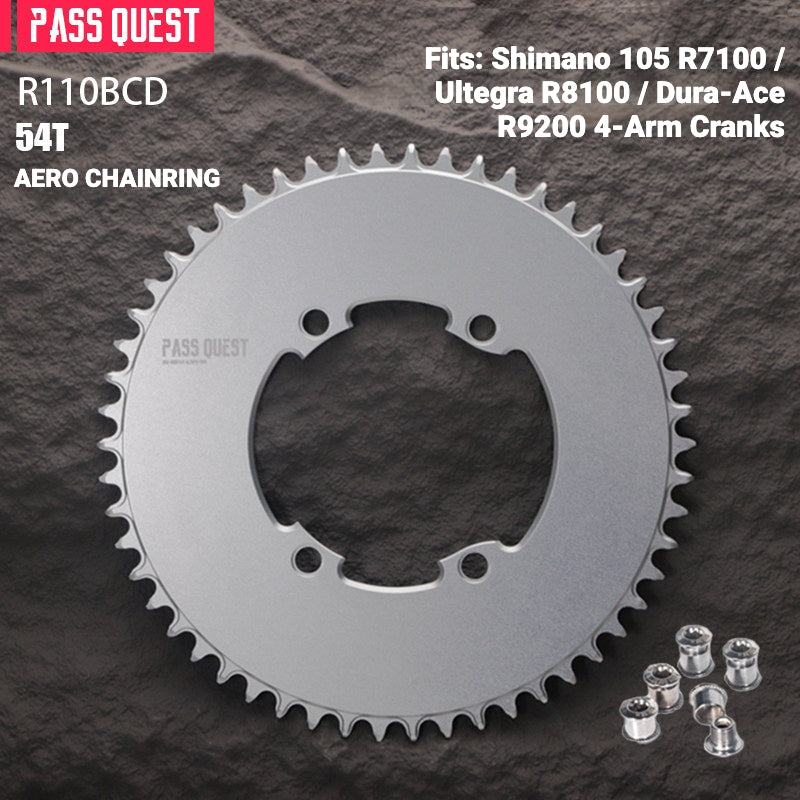

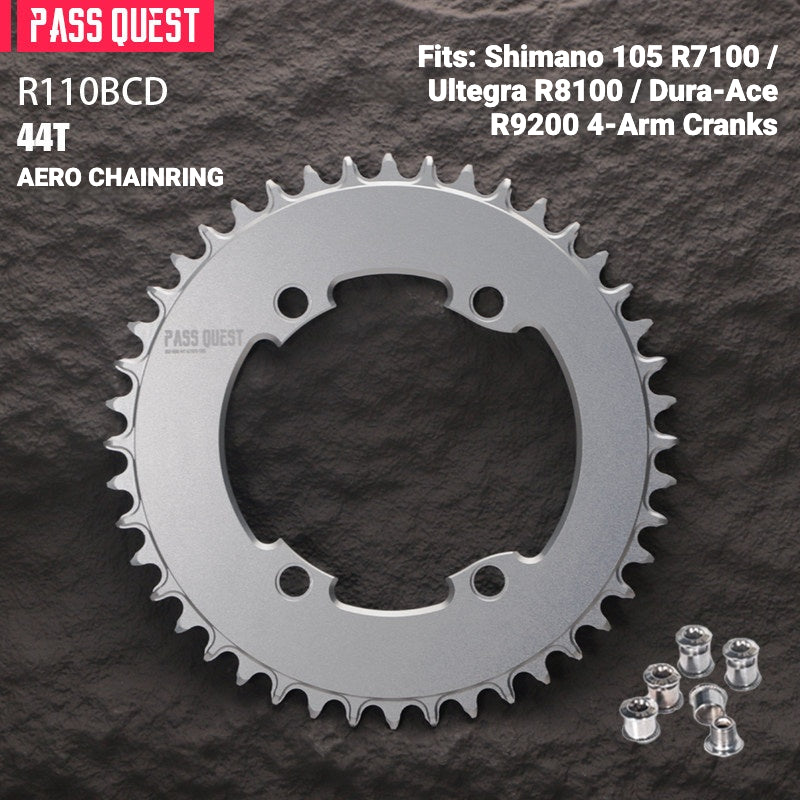

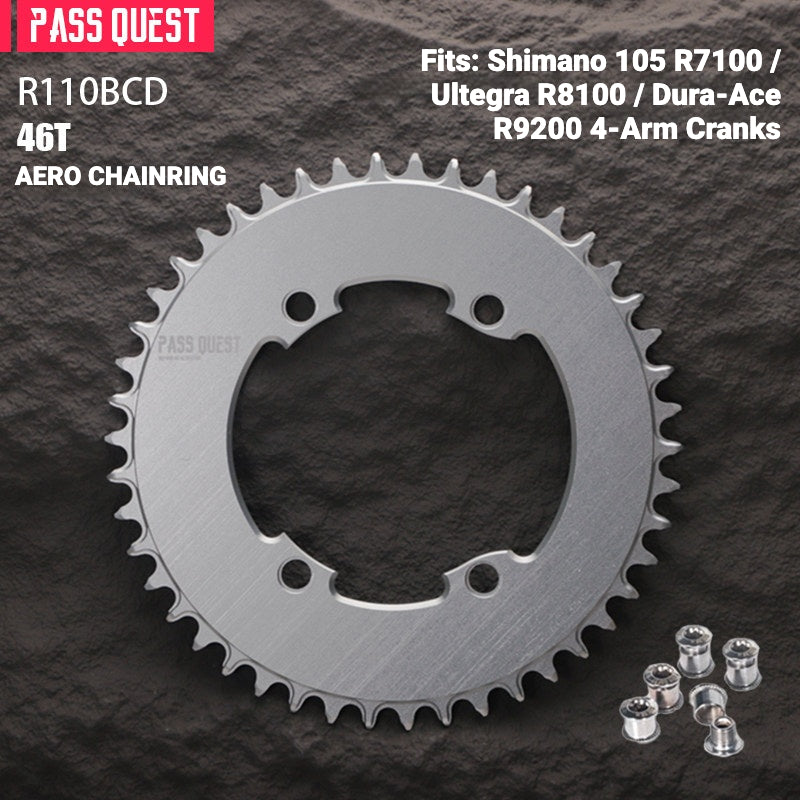

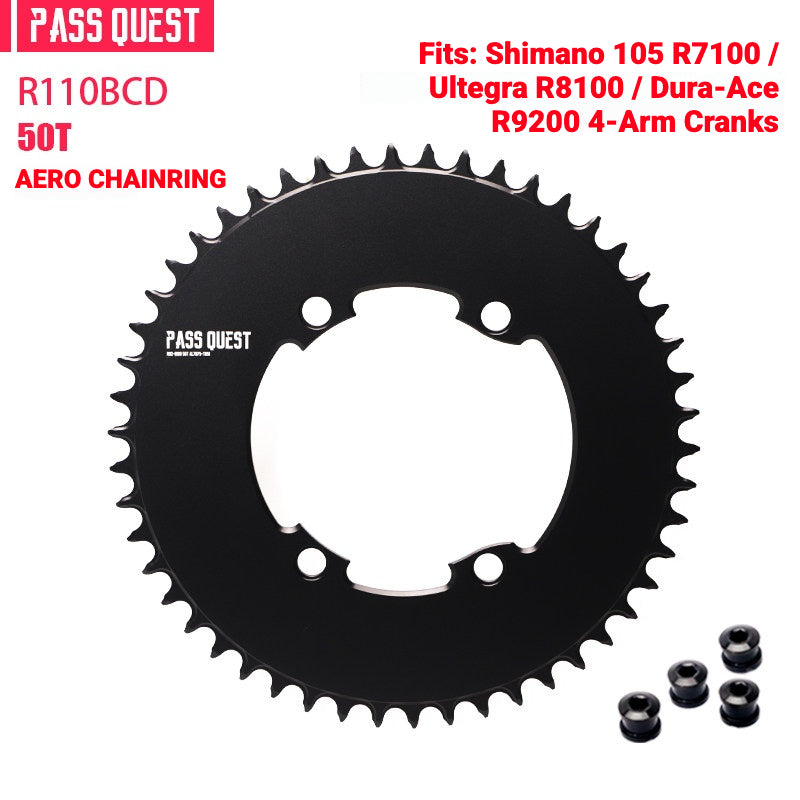

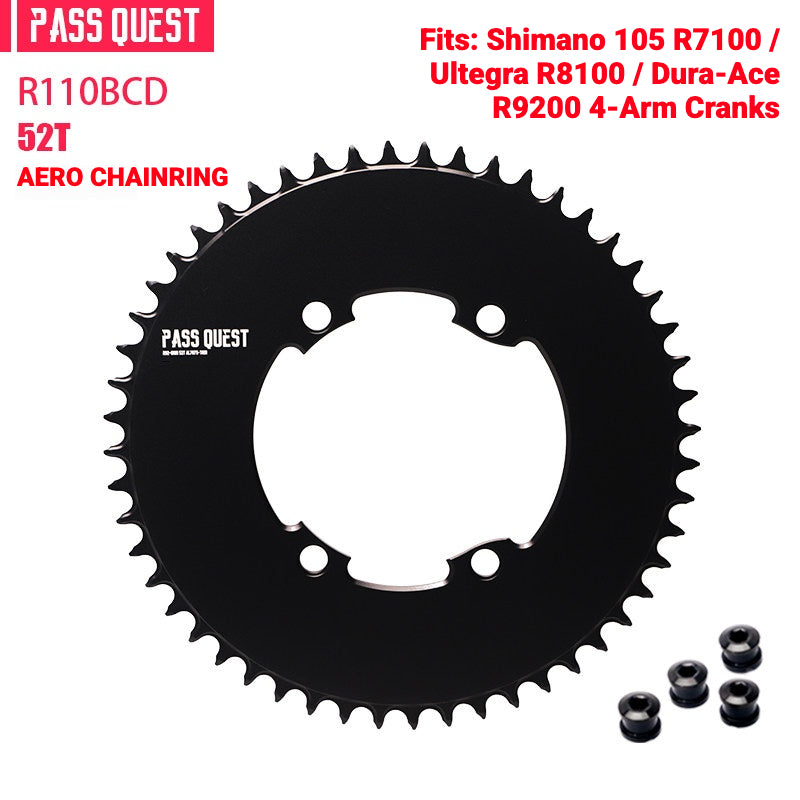

44T, 46T, 48T, 50T, 52T, 54T, 56T, 58T, 60T

Available Colors

Black, Silver

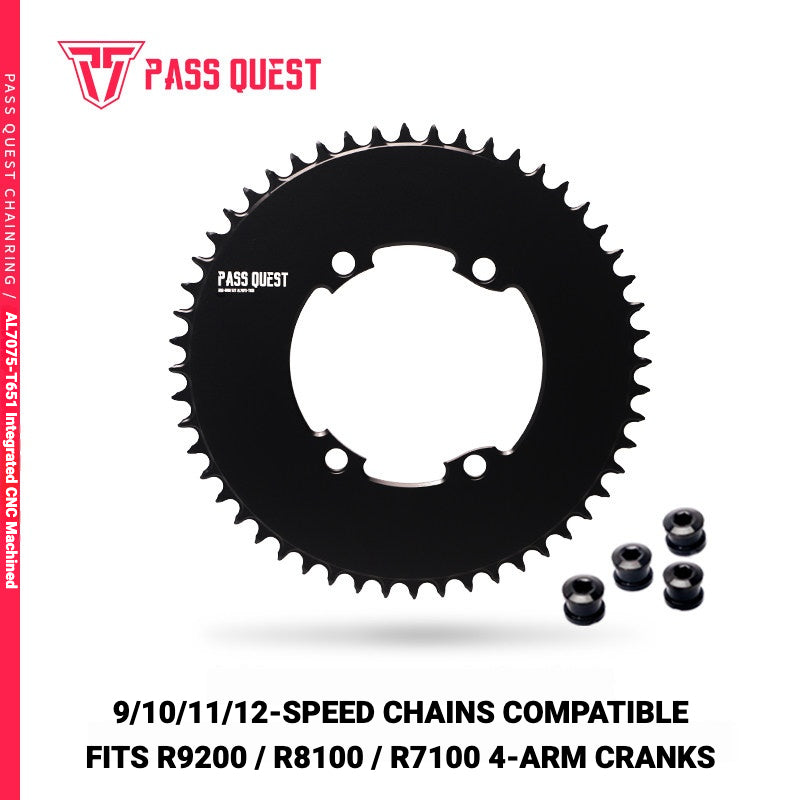

Chain Compatibility

Compatible with standard:

9 / 10 / 11 / 12-Speed Chains

Please confirm your complete drivetrain configuration before ordering.

Key Features

• Designed for Shimano R7100 / R8100 / R9200
• 110BCD Shimano 4-arm interface
• Full-profile chainring design
• Narrow-wide tooth profile
• 7075-T651 aluminum alloy
• Precision CNC machining
• High rigidity
• Optimized lightweight structure
• Improved chain retention
• Recessed mounting structure
• 44T–60T large chainring options
• Black and silver finishes
• Designed for 1x road setups

Package Includes

PASS QUEST 110BCD Full-Profile Chainring ×1

Crankset, chain, chainring bolts and other accessories shown are not included unless otherwise stated.

Installation Note

Before ordering, please confirm:

• Your exact Shimano crank model
• R7100 / R8100 / R9200 generation
• 110BCD 4-arm interface
• Required tooth count
• Chain compatibility
• Frame and drivetrain clearance for larger chainring sizes

Professional installation is recommended.

For larger sizes such as 56T / 58T / 60T, please check frame clearance before ordering.

호환성 확인: 원제조업체(OEM) 부품의 모델과 배치가 복잡하기 때문에 이 제품이 호환되지 않는 경우가 있을 수 있습니다.

제품을 받으신 후 설치 전에 OEM 사양과 비교하여 호환성을 확인해 주시기 바랍니다.

토크 사양: 이 제품은 OEM 부품 매뉴얼에 명시된 토크 값에 따라 엄격히 설치하십시오. 설치 문제: OEM 사양과 차이가 있거나 설치 초기 단계에서 어려움이 발생할 경우 즉시 중단하고 반품 또는 교환을 위해 고객 서비스에 문의하십시오.

강제 설치 금지: 어떠한 경우에도 강제로 설치하지 마십시오. 책임: 이 제품(또는 그 부품)의 강제 설치 또는 무단 개조로 인한 모든 손해는 구매자의 단독 책임입니다.

모든 제품은 수령 시 보게 될 색상을 정확하게 표현하기 위해 촬영되었습니다.

조명, 각도 또는 화면 설정의 차이로 인해 약간의 색상 차이가 발생할 수 있습니다.

실제 제품을 기준으로 생각해 주시기 바랍니다. "컬러" 및 "블루" 제품의 경우 염색 과정에서 색상 분포가 고르지 않을 수 있어 각 제품이 독특합니다.
