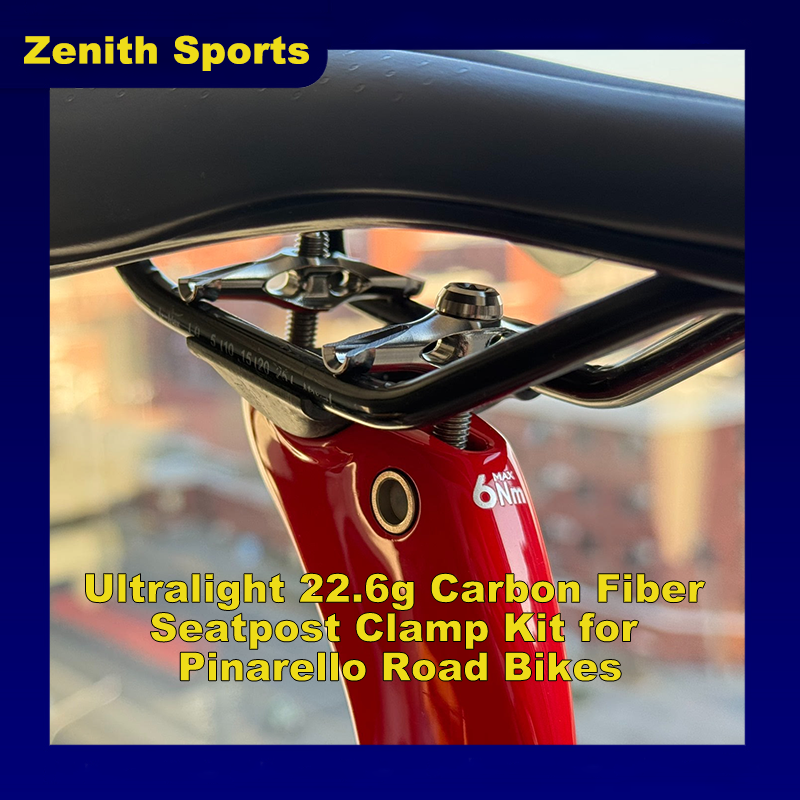

Ultralight 22.6g Carbon Fiber Seatpost Clamp Kit for Pinarello F8, Dogma F12, Dogma F, X Series & 2025 Models

This Ultralight Carbon Fiber Seatpost Clamp Kit is designed specifically for Pinarello road bikes from the F8 generation onward, including Dogma F12, Dogma F, X Series, and the latest 2025 models.

The clamp base is manufactured from prepreg carbon fiber and formed using a high-pressure compression molding process, ensuring excellent structural integrity while maintaining extremely low weight. The overall stack height is identical to the original factory clamp, allowing for a direct replacement without changing saddle position or fit.

Despite its lightweight design, this clamp system offers outstanding strength and reliability. Different material configurations are available to meet varying rider weight and usage requirements, from everyday riding to high-intensity training and racing.

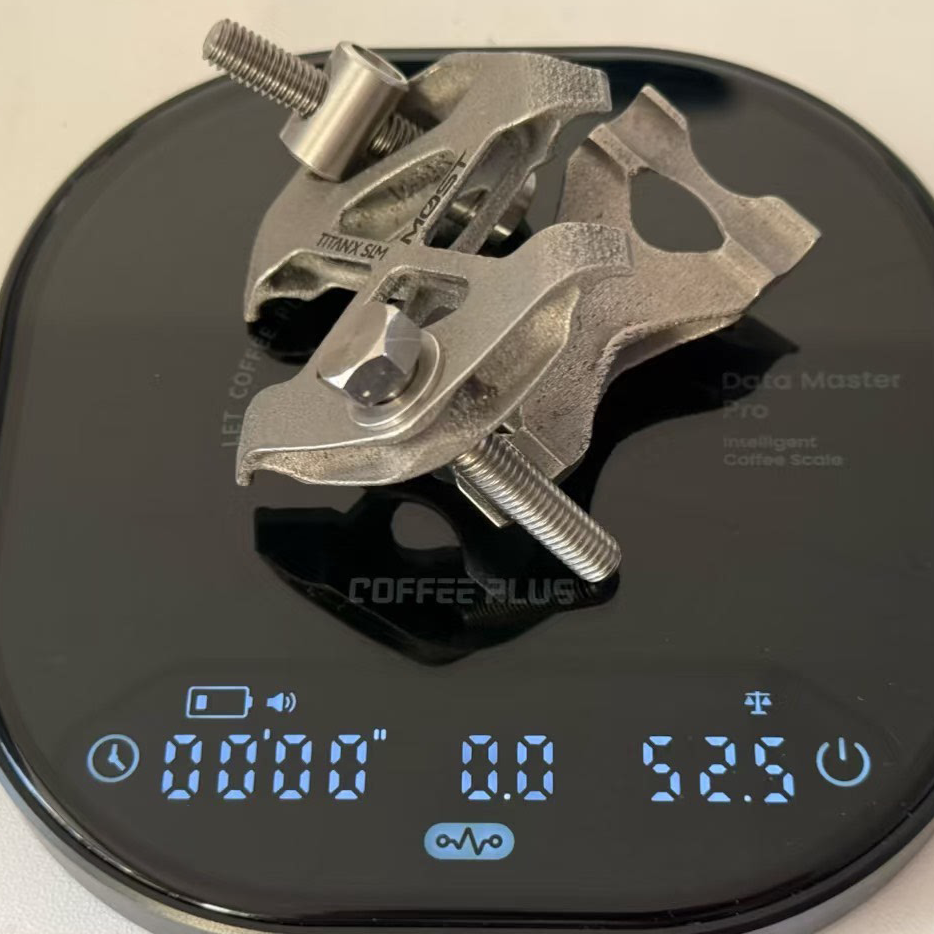

Compared to the original factory 3D-printed seatpost clamp, this kit achieves a weight reduction of approximately 30 grams, making it an ideal upgrade for riders focused on performance optimization and clean integration.

Load Capacity Options

This seatpost clamp kit is available with multiple load-rated configurations:

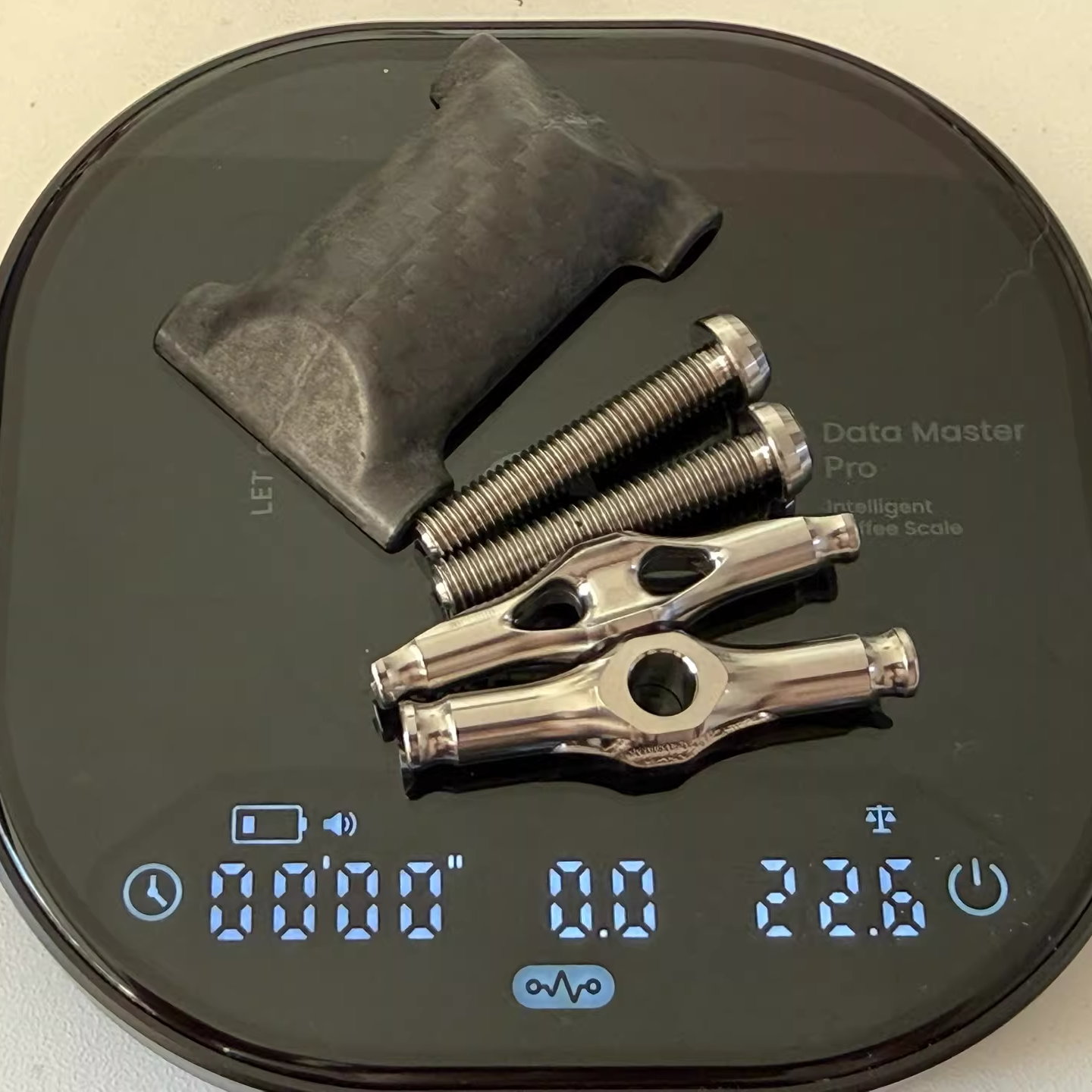

• Aluminum Saddle Rail Kit: supports riders up to 95 kg

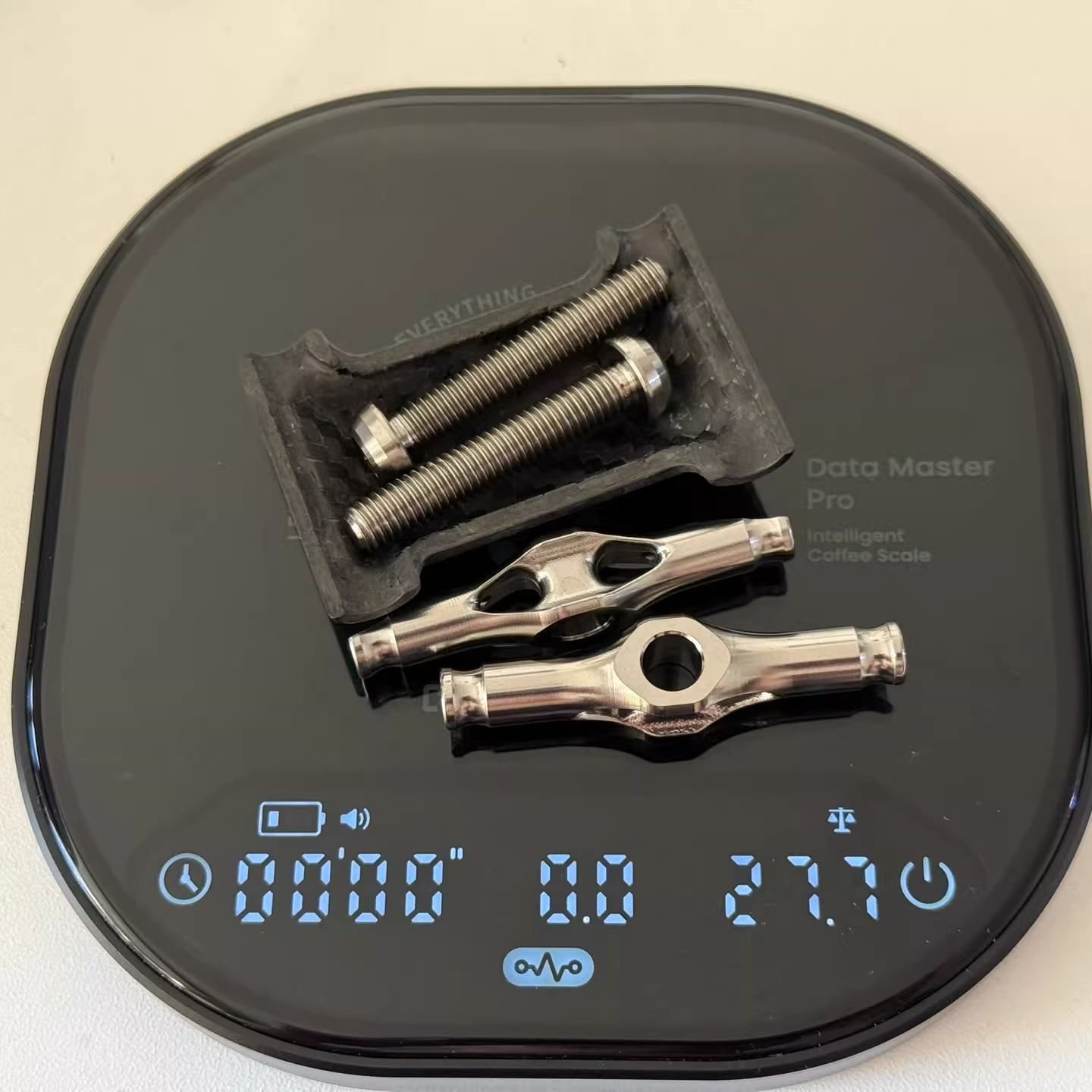

• Titanium Saddle Rail Kit: supports riders up to 120 kg

• Carbon Fiber Base Clamp: optimized for lightweight builds with high stiffness

The titanium version uses S-PARTS TC4 titanium bolts, providing increased load capacity and long-term durability while maintaining a minimal overall system weight.

Key Features

• Designed for Pinarello F8, Dogma F12, Dogma F, X Series, and newer models (including 2025 frames)

• Ultralight prepreg carbon fiber base

• High-pressure molded construction for strength and dimensional accuracy

• Same installation height as the original factory clamp

• Multiple load-rated configurations available (up to 120 kg)

• S-PARTS TC4 titanium bolts included

• Approx. 30 g lighter than the stock 3D-printed clamp

• Clean, reliable, and race-ready seatpost clamping solution

Materials

• Clamp base: Prepreg carbon fiber

• Bolts: S-PARTS TC4 titanium (for titanium kit version)

• Manufacturing process: High-pressure molding + precision finishing

What’s Included

• Carbon fiber seatpost clamp assembly × 1 set

• S-PARTS titanium bolts × 2

Please leave a note at checkout to specify your preferred bolt color.

Compatibility

• Pinarello F8

• Pinarello Dogma F12

• Pinarello Dogma F

• Pinarello X Series

• Pinarello 2025 and newer road frames

Installation Notes

• Install according to Pinarello’s recommended torque specifications

• Use a torque wrench to prevent over-tightening

• Ensure proper alignment before final tightening

Compatibility Check: Due to the complexity of original equipment manufacturer (OEM) parts' models and batches, there may be instances where this product is incompatible.

Upon receiving this product, please compare it with the OEM specifications to ensure compatibility before installation.

Torque Specifications: Install this product strictly according to the torque values specified in the OEM parts manual.Installation Issues: If you encounter any discrepancies with the OEM specifications or face difficulties at the initial stage of installation, stop immediately and contact customer service for assistance with returns or exchanges.

No Forced Installation: Do not force installation under any circumstances.Liability: Any damages resulting from forced installation or unauthorized modifications of this product (or its components) will be the sole responsibility of the buyer.

All products are photographed to accurately represent the colors you will see upon receipt.

Due to differences in lighting, angles, or screen settings, slight color variations may occur.

The actual product should be considered the standard.For "colored" and "blue" products, the coloring process may result in uneven color distribution, making each product unique.
