NIUJU Computer Mount for QUICK PRO CANWIN ZEPHYR SSL Carbon Fiber / Aluminum Alloy

NIUJU Computer Mount for QUICK SL SSL Integrated Handlebar

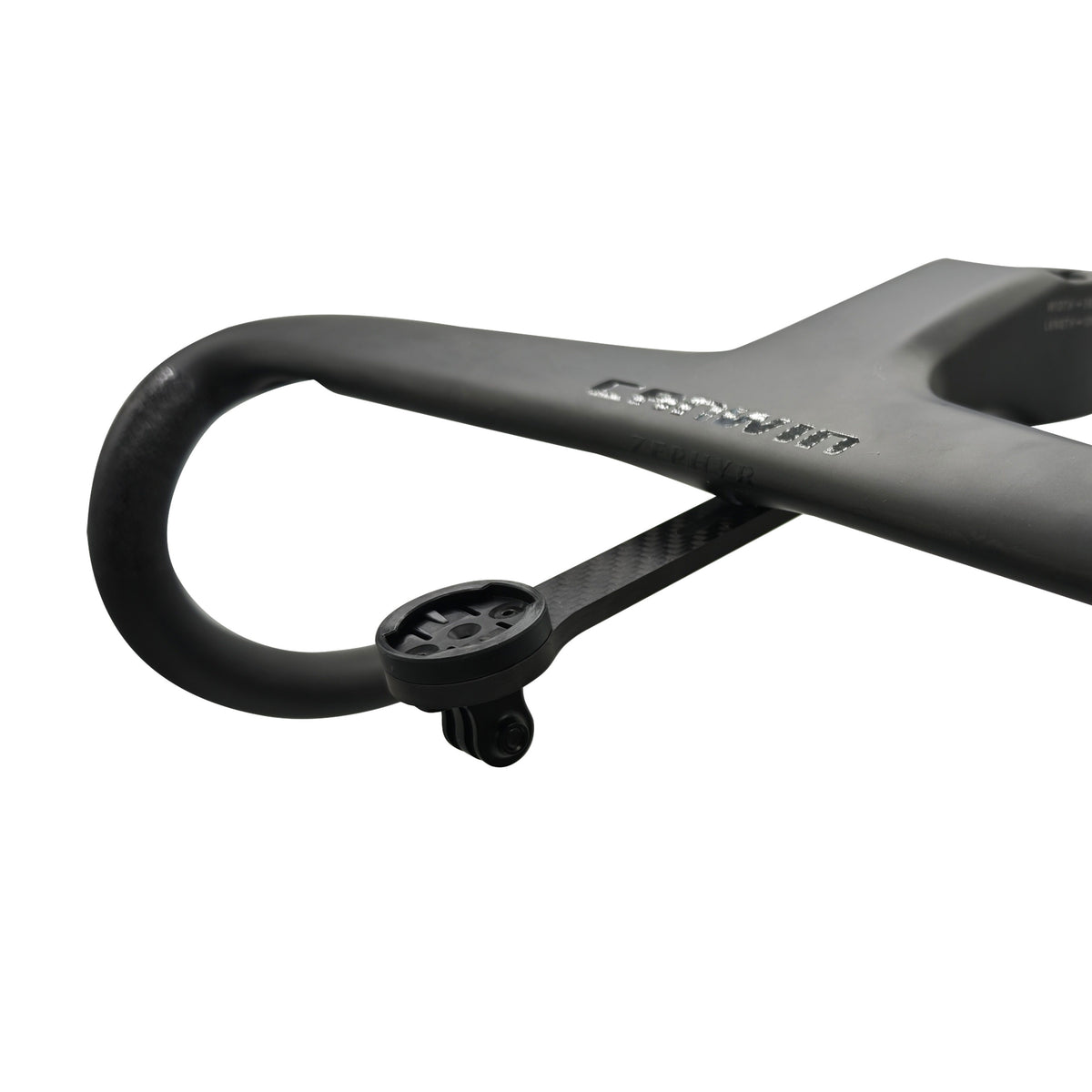

A lightweight computer mount designed for the QUICK SL SSL integrated handlebar, available in carbon fiber and CNC-machined aluminum alloy versions.

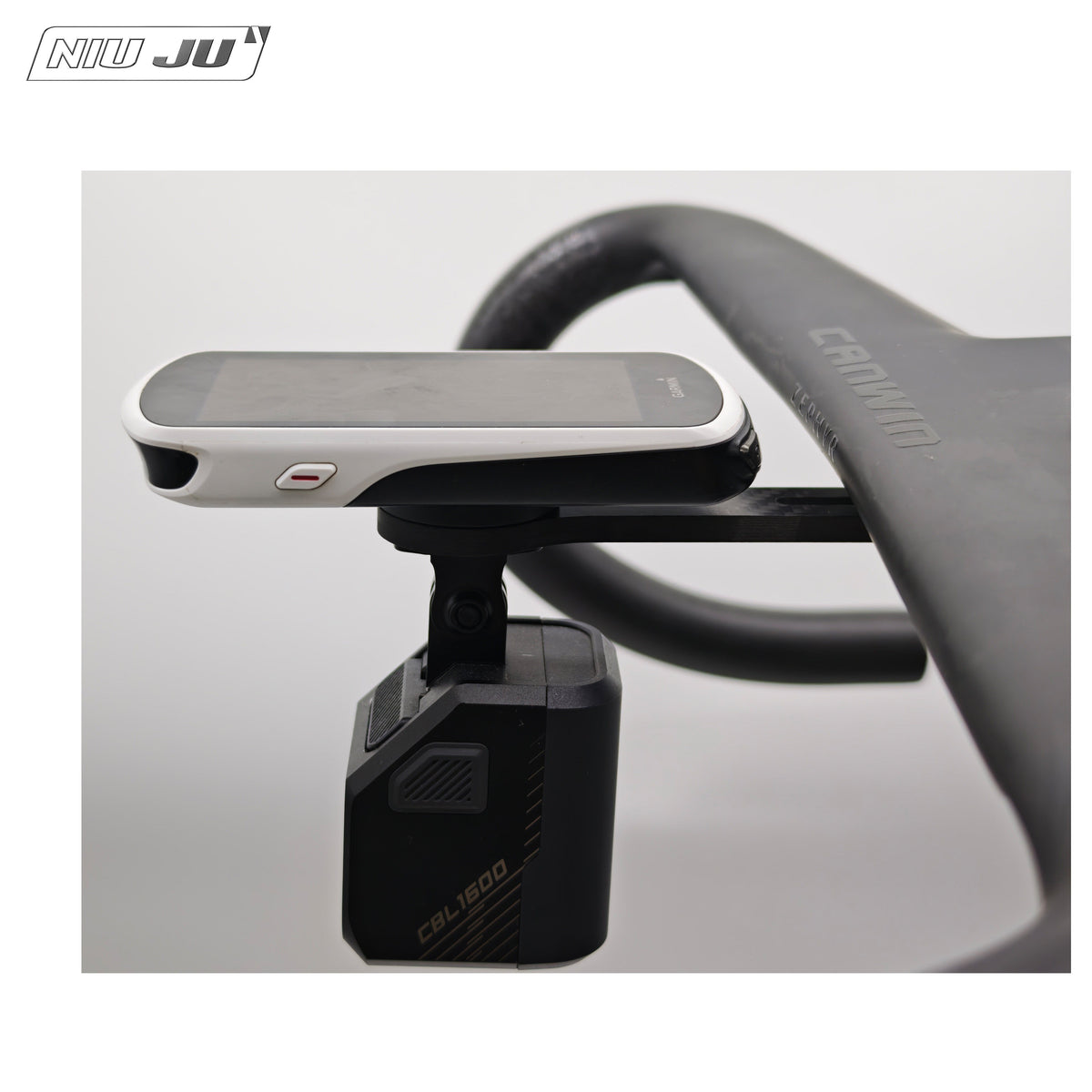

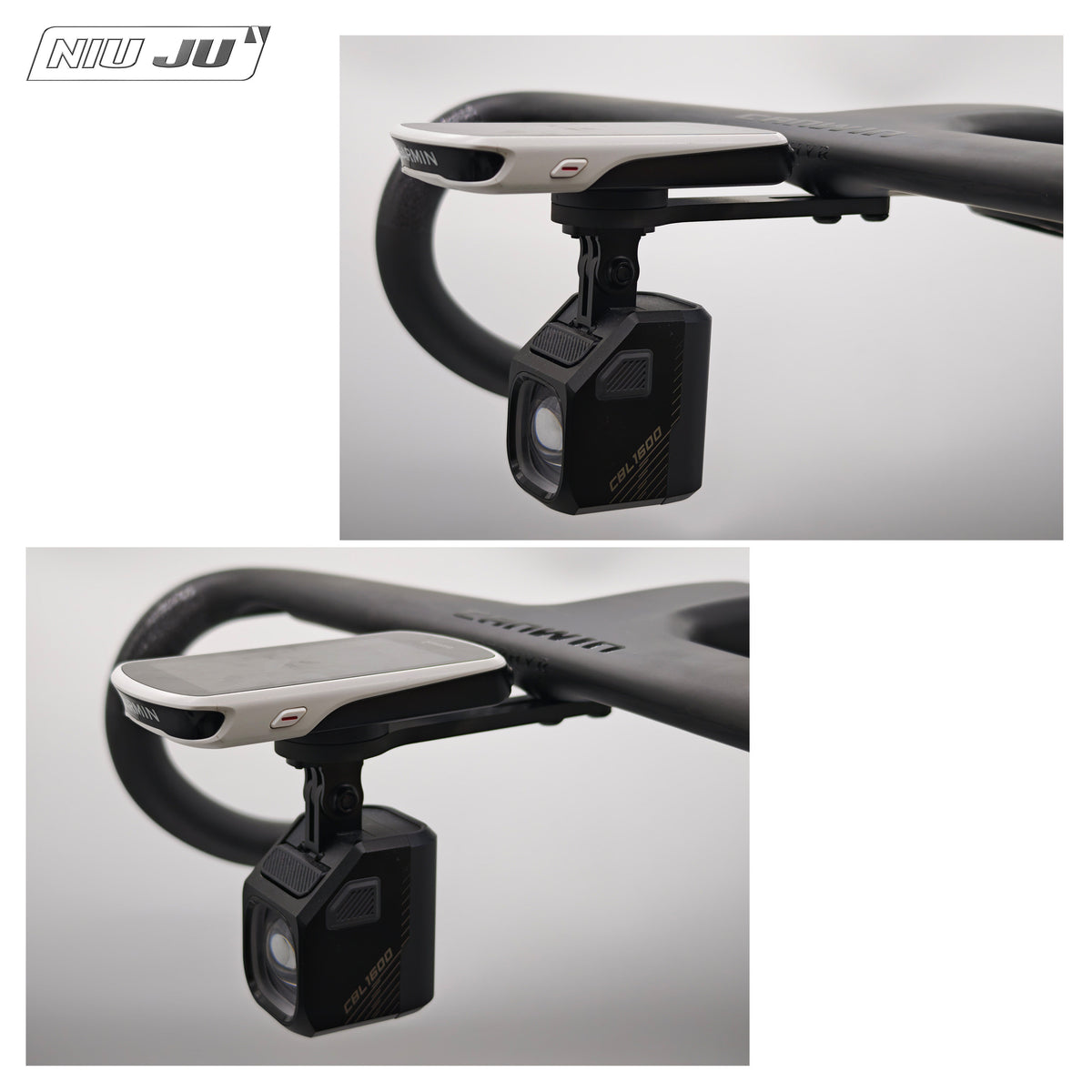

Both versions provide a clean and secure mounting position for your cycling computer and include a GoPro-style lower accessory mount for compatible bike lights, action cameras and other accessories.

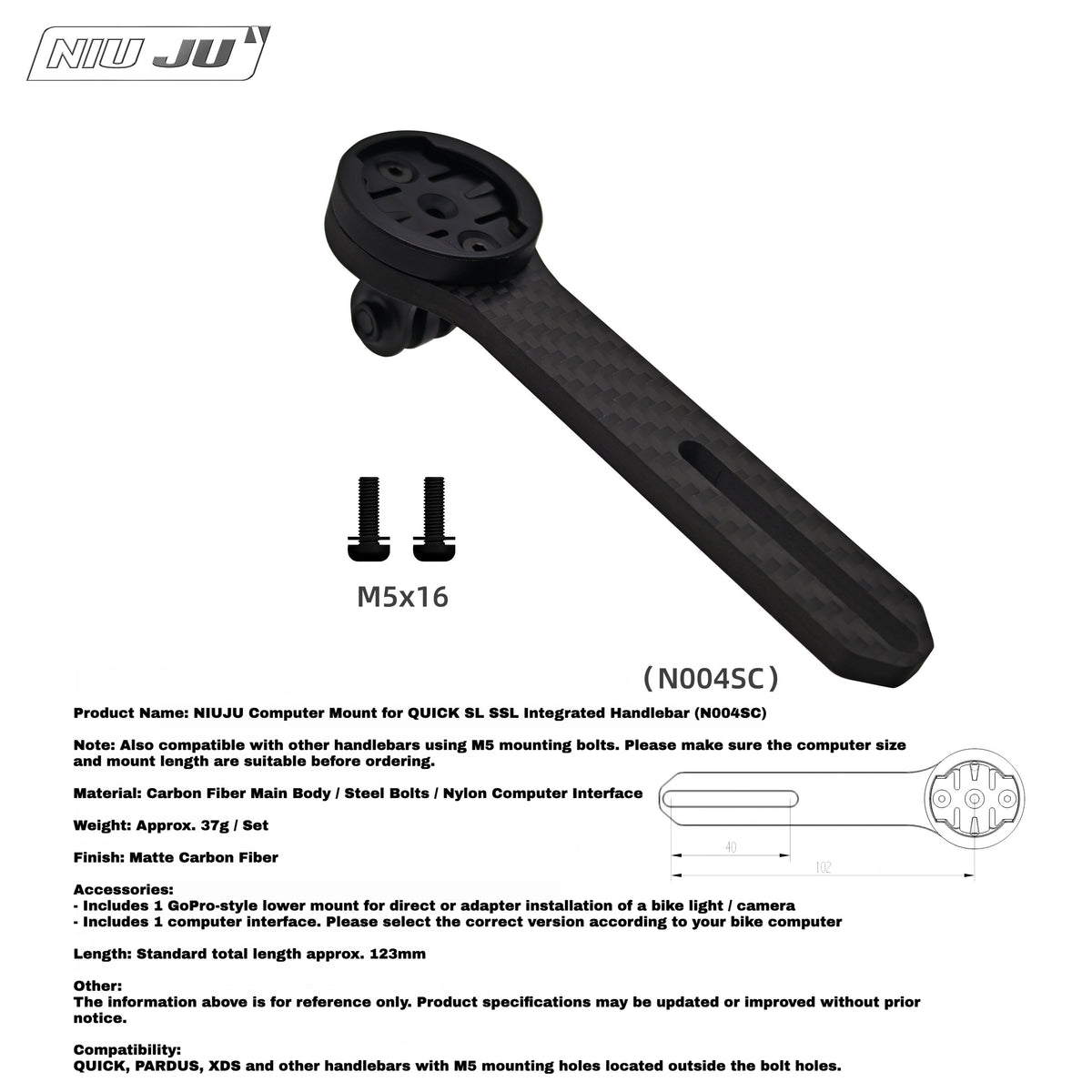

N004SC – Carbon Fiber Version

Model: N004SC
Material: Carbon Fiber Main Body / Steel Bolts / Reinforced Nylon Computer Interface
Finish: Matte Carbon Fiber
Weight: Approx. 37g / Set Including Bolts
Total Length: Approx. 123mm

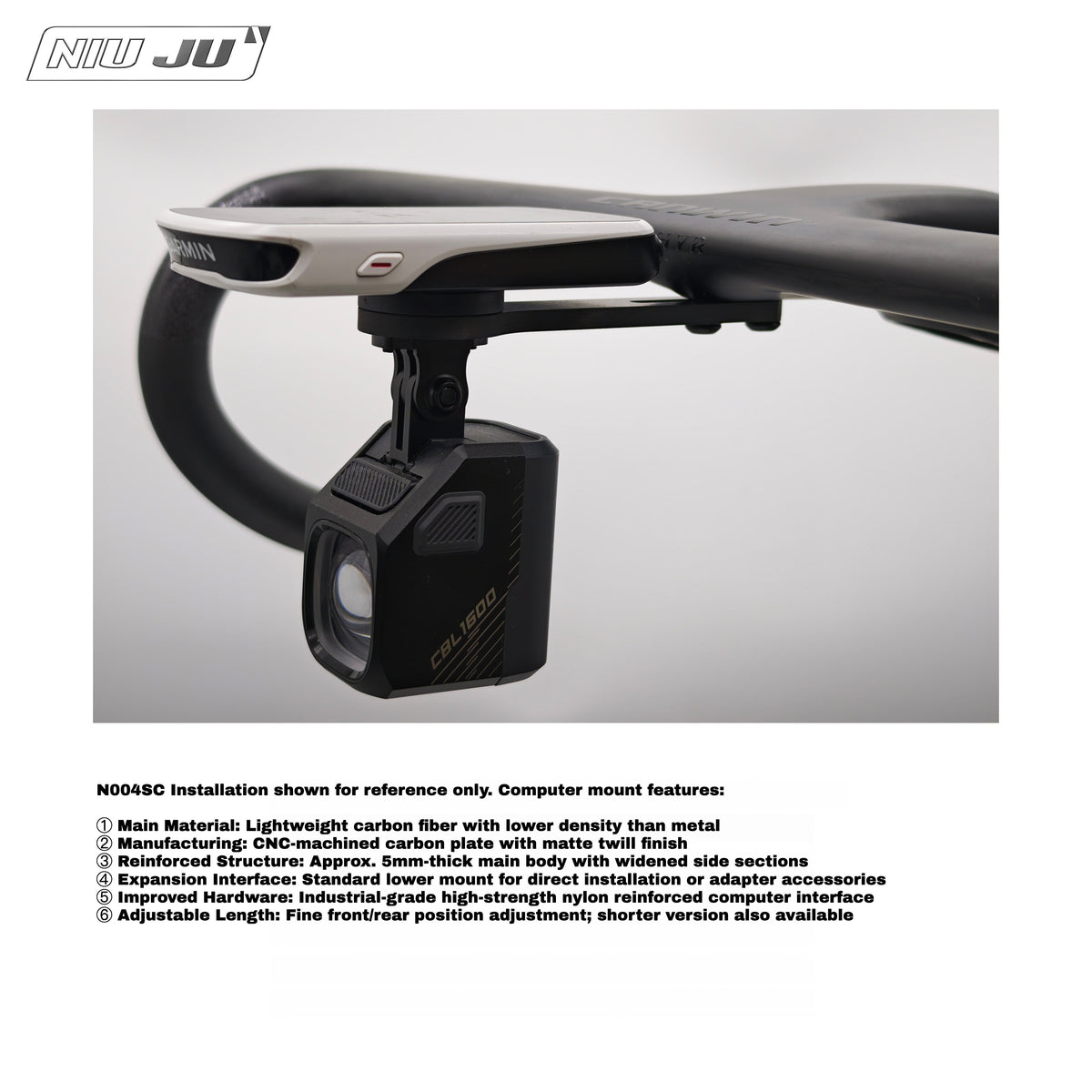

Features:
① Lightweight carbon fiber construction
② CNC-machined carbon plate
③ Approx. 5mm reinforced main body
④ Adjustable forward / backward position
⑤ GoPro-style lower accessory mount included
⑥ Compatible with larger cycling computers including Garmin Edge 1050 and Wahoo ELEMNT ACE

Recommended maximum load for lower accessory mount: 350g

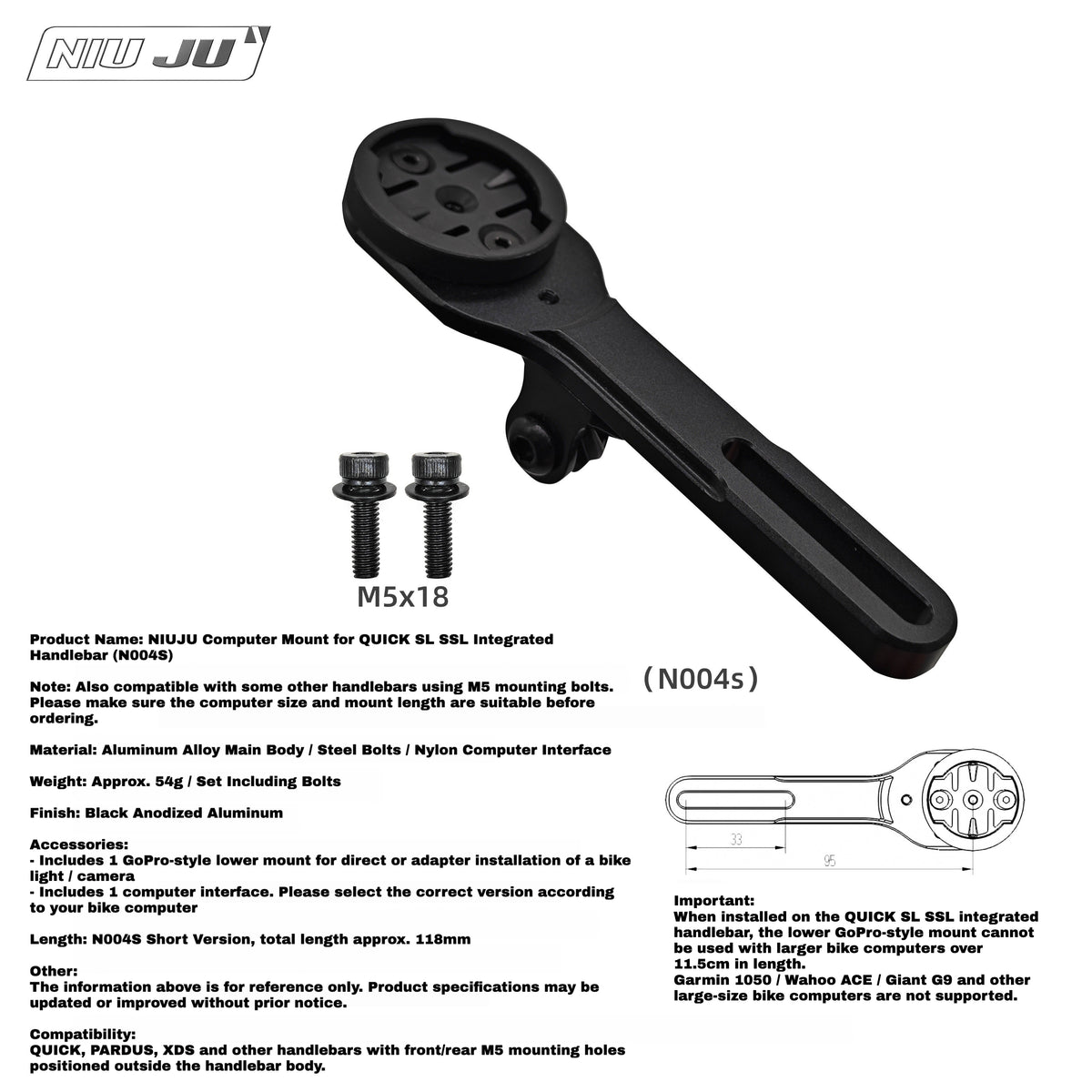

N004S – Aluminum Alloy Version

Model: N004S
Material: Aluminum Alloy Main Body / Steel Bolts / Reinforced Nylon Computer Interface
Finish: Black Anodized
Weight: Approx. 54g / Set Including Bolts
Total Length: Approx. 118mm

Features:
① CNC-machined aluminum alloy construction
② High structural strength
③ Adjustable forward / backward position
④ Compact short-version design
⑤ GoPro-style lower accessory mount included
⑥ Suitable for most standard-size cycling computers

Important:
When installed on the QUICK SL SSL integrated handlebar, the N004S version does not support cycling computers longer than approximately 115mm.

Garmin Edge 1050, Wahoo ELEMNT ACE, Giant G9 and other similar large cycling computers are not supported with the N004S configuration.

Computer Compatibility

Available interfaces include selected models from:

Garmin
Wahoo
Bryton
iGPSPORT
Giant
Blackbird
Magene
XOSS
COROS

Please select the correct computer interface when ordering.

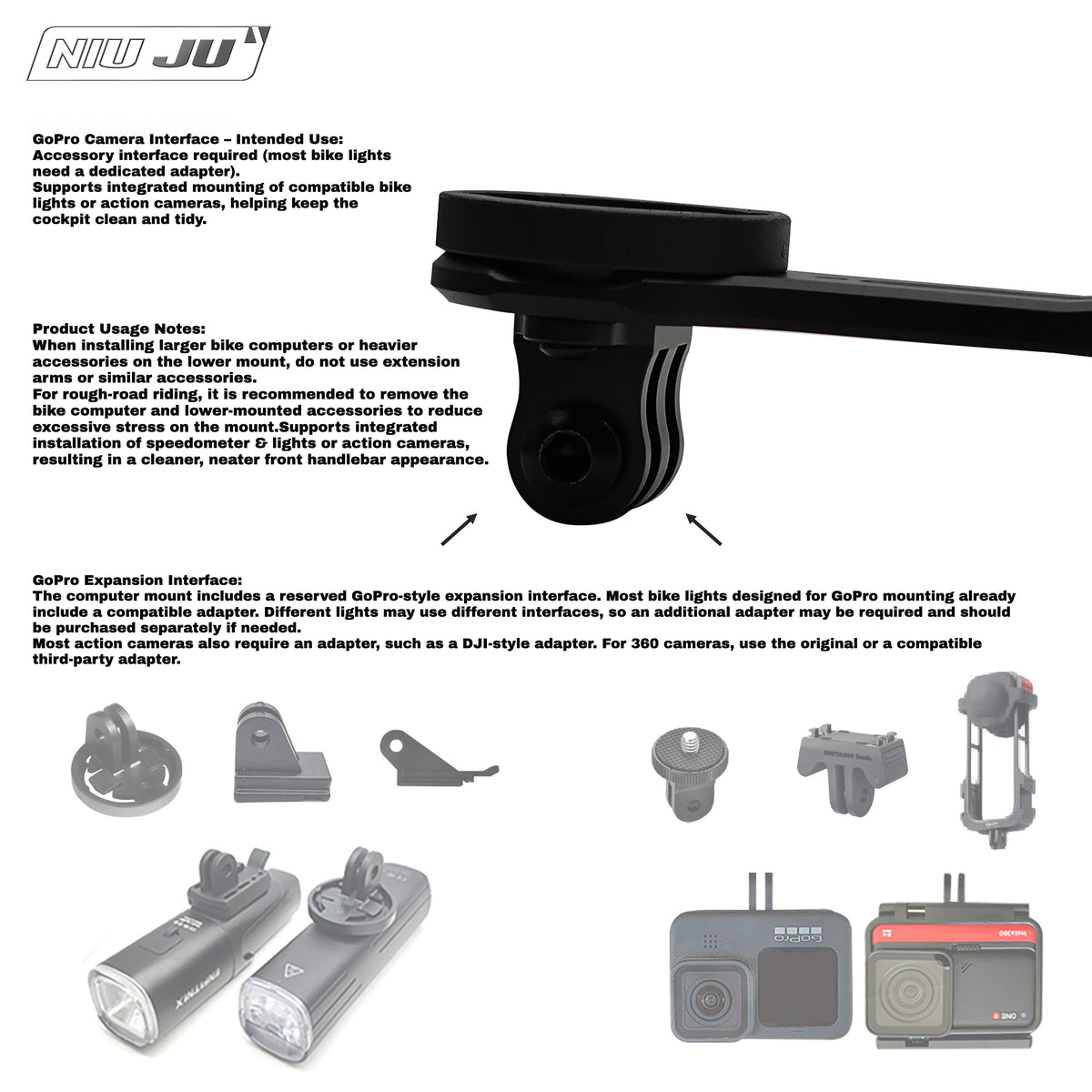

GoPro-Style Accessory Interface

The lower GoPro-style mount can be used with compatible:

Bike Lights
Action Cameras
GoPro Accessories

Some bike lights and action cameras may require an additional adapter.

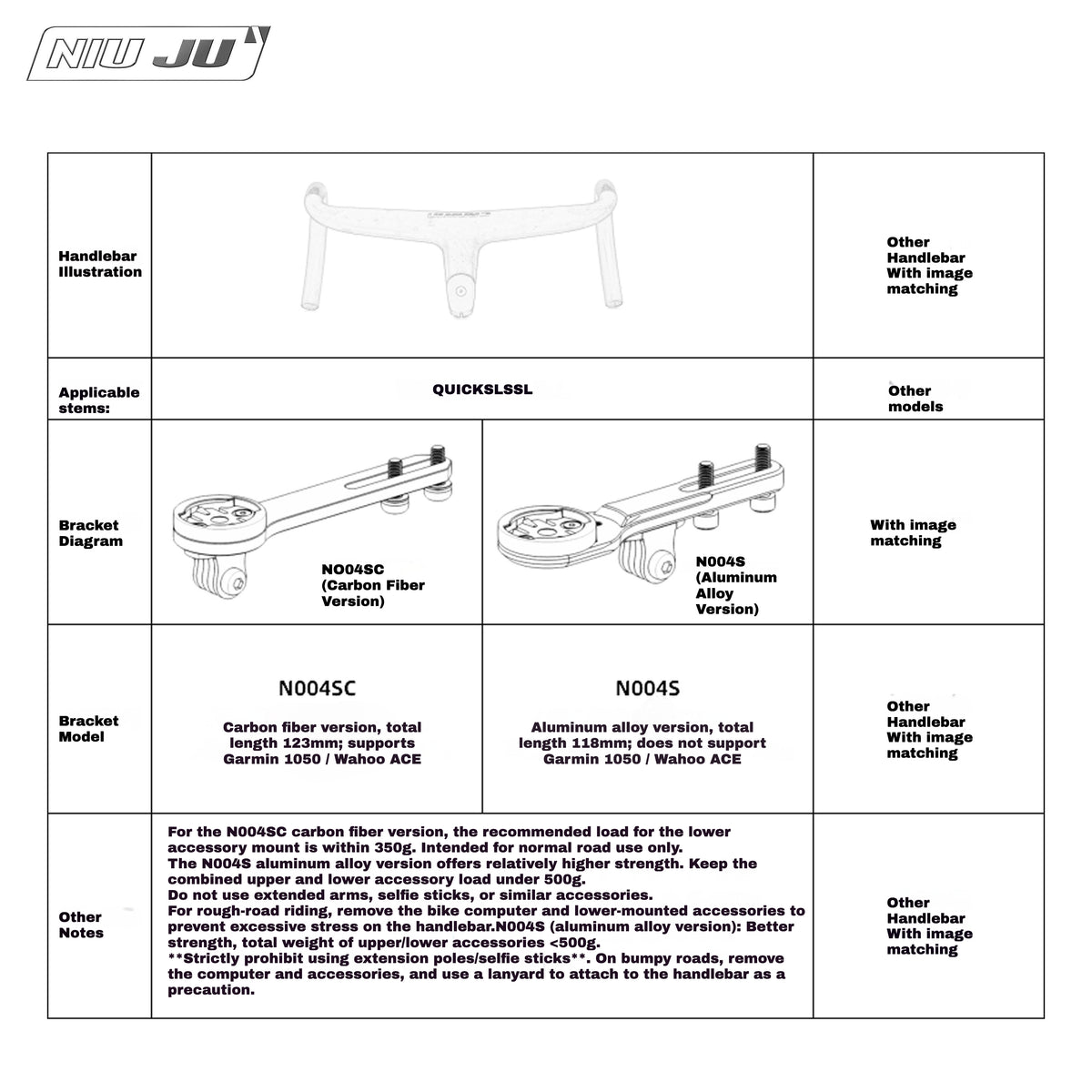

Compatibility

Primarily designed for:

QUICK SL SSL Integrated Handlebar

May also fit selected handlebars from:

QUICK
PARDUS
XDS

and other handlebars with compatible front / rear M5 mounting holes.

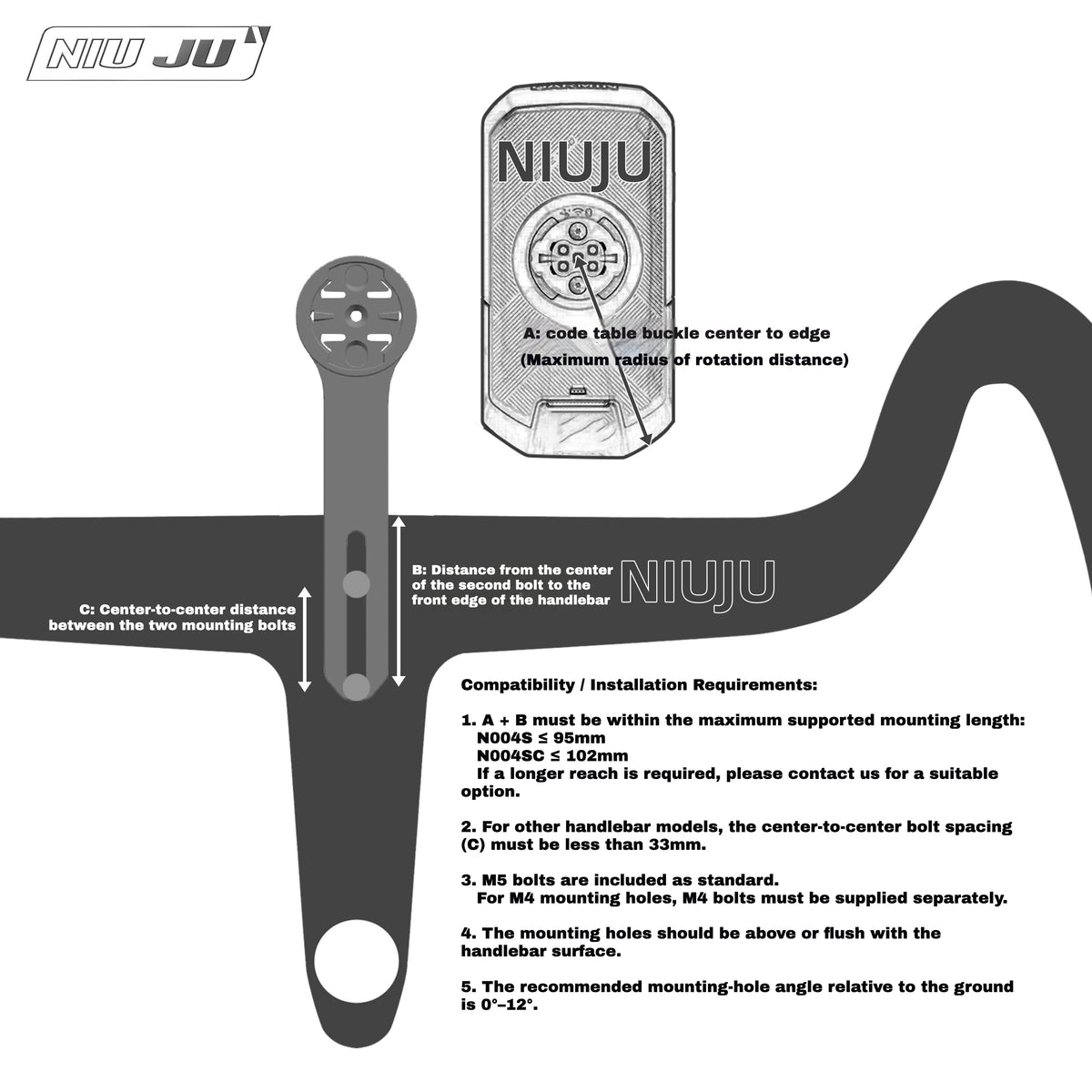

Mounting Requirements

N004S: A + B ≤ 95mm
N004SC: A + B ≤ 102mm
Mounting Bolt Center Distance: Less than 33mm
Recommended Mounting Hole Angle: 0°–12°

M5 mounting bolts are supplied as standard.

If your handlebar uses M4 mounting holes, suitable M4 bolts must be supplied separately.

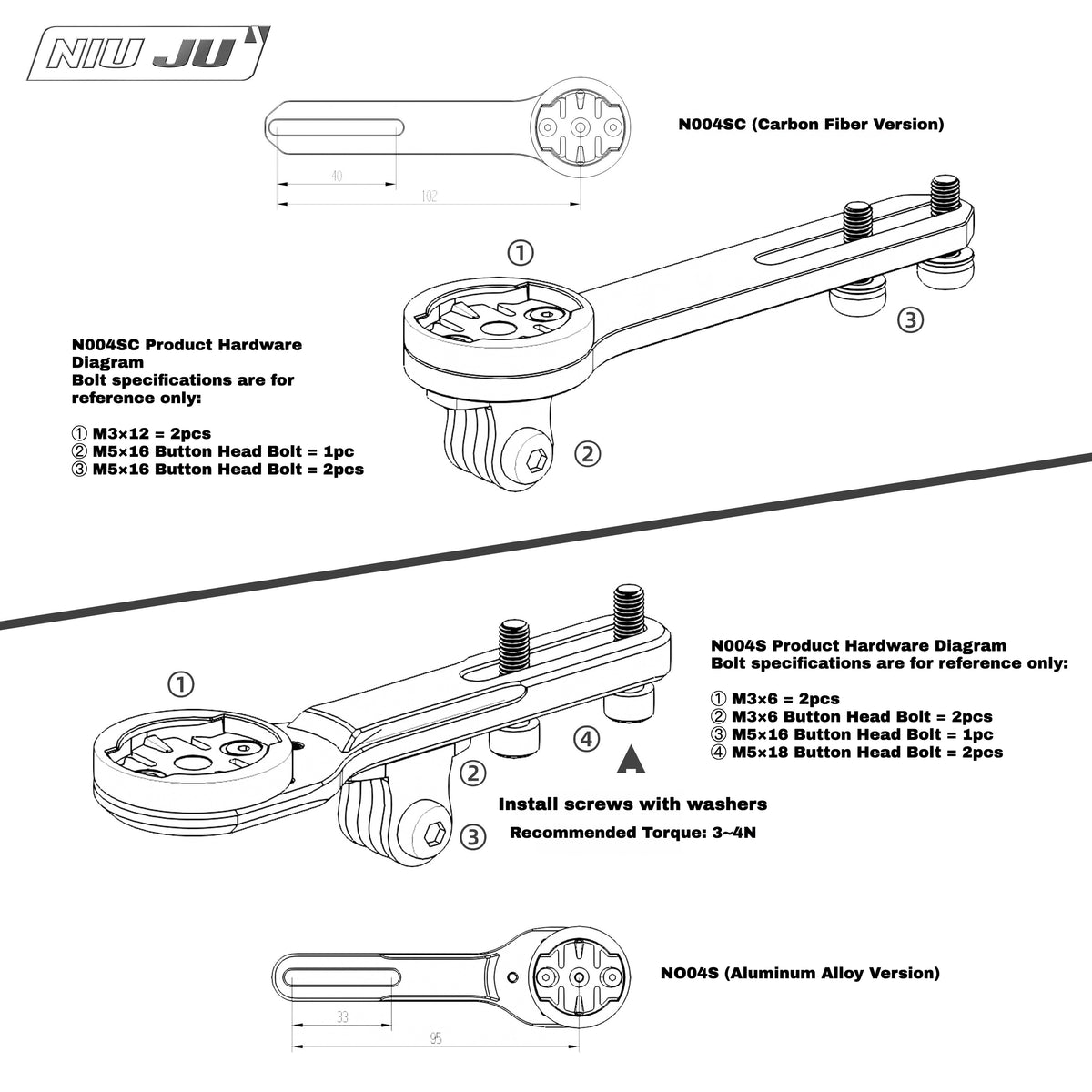

Installation Hardware

N004SC:
① M3×12 = 2pcs
② M5×16 Button Head Bolt = 1pc
③ M5×16 Button Head Bolt = 2pcs

N004S:
① M3×6 = 2pcs
② M3×6 Button Head Bolt = 2pcs
③ M5×16 Button Head Bolt = 1pc
④ M5×18 Button Head Bolt = 2pcs

Recommended Torque: 3–4Nm

Usage Notes

For rough roads or highly uneven surfaces, removing the cycling computer and lower-mounted accessories is recommended.

Do not use long extension arms, selfie sticks or similar accessories.

Package Includes

1 × NIUJU Computer Mount
1 × Computer Interface
1 × GoPro-Style Lower Accessory Mount
Mounting Hardware

Cycling computer, bike light, camera, handlebar and other accessories shown in the product images are not included.

Please verify your handlebar mounting dimensions and cycling computer size before ordering.

Product specifications and supplied hardware may be updated between production batches without prior notice.

Compatibility Check: Due to the complexity of original equipment manufacturer (OEM) parts' models and batches, there may be instances where this product is incompatible.

Upon receiving this product, please compare it with the OEM specifications to ensure compatibility before installation.

Torque Specifications: Install this product strictly according to the torque values specified in the OEM parts manual.Installation Issues: If you encounter any discrepancies with the OEM specifications or face difficulties at the initial stage of installation, stop immediately and contact customer service for assistance with returns or exchanges.

No Forced Installation: Do not force installation under any circumstances.Liability: Any damages resulting from forced installation or unauthorized modifications of this product (or its components) will be the sole responsibility of the buyer.

All products are photographed to accurately represent the colors you will see upon receipt.

Due to differences in lighting, angles, or screen settings, slight color variations may occur.

The actual product should be considered the standard.For "colored" and "blue" products, the coloring process may result in uneven color distribution, making each product unique.
