Product Description

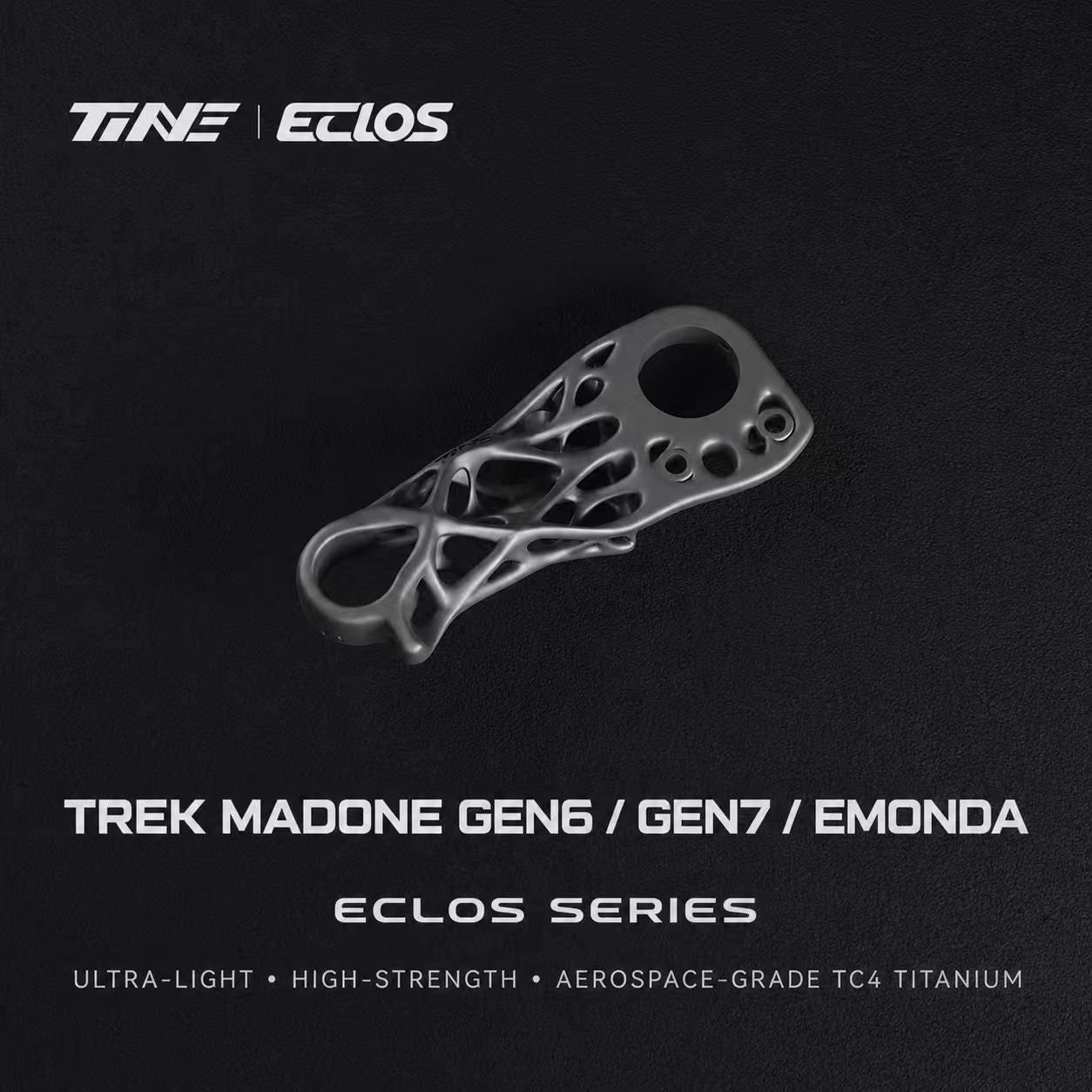

A Next-Generation Titanium Derailleur Hanger for Trek Madone & Émonda

Most replacement derailleur hangers are conventional CNC-machined aluminum components.

TiNE ECCLOS CryoFusion is engineered differently.

Developed specifically for selected Trek Madone Gen 6, Madone Gen 7, and Émonda road bike platforms, this premium rear derailleur hanger combines advanced BESO bi-directional topology optimization with ECCLOS CryoFusion αβ-64 titanium alloy technology.

The result is an ultra-light, high-strength derailleur hanger engineered for:

• Precise rear derailleur alignment

• Exceptional structural efficiency

• Outstanding fatigue resistance

• Superior corrosion resistance

• Premium biomimetic aesthetics

• Long-term drivetrain reliability

This is not a generic replacement hanger. Its geometry is developed around the rear dropout architecture of compatible Trek road frames for precise fitment and clean integration.

Designed Specifically for Trek Madone & Émonda

Compatibility

Compatible with selected:

• Trek Madone Gen 6

• Trek Madone Gen 7

• Trek Émonda

Please confirm your exact frame model and generation before ordering.

Because Trek has used different derailleur hanger designs across model years and frame generations, compatibility should always be verified before installation.

If you are unsure, please send us a clear photo of your original derailleur hanger and rear dropout.

Why ECCLOS CryoFusion?

Unlike traditional aluminum derailleur hangers, ECCLOS uses digital structural optimization to determine exactly where material is required.

Instead of relying on conventional geometric machining, every structural curve and transition is developed around simulated load paths and stress concentration points.

The result is a hanger designed to be:

• Lighter

• Stronger

• More structurally efficient

• More fatigue resistant

• Highly corrosion resistant

• Precisely aligned for consistent shifting

• Better suited to premium performance road bikes

CryoFusion αβ-64 Titanium Alloy

ECCLOS CryoFusion αβ-64 is based on premium TC4 titanium alloy and uses a proprietary low-temperature αβ phase optimization process.

Compared with conventional aluminum derailleur hangers, the CryoFusion titanium structure provides an excellent combination of:

• Ultra-high tensile strength

• Excellent fatigue resistance

• Superior corrosion resistance

• High stiffness-to-weight efficiency

• Long-term durability

• Premium metallic appearance

Engineered for riders who want more than a standard replacement hanger.

BESO Bi-Directional Topology Optimization

ECCLOS uses BESO — Bi-directional Evolutionary Structural Optimization to refine the hanger according to simulated load conditions.

Rather than simply removing material to reduce weight, the structure evolves according to where strength is actually required.

Benefits

• Reduced unnecessary material

• Optimized stress distribution

• Improved stiffness-to-weight ratio

• Reinforced critical mounting areas

• Lightweight biomimetic structure

• Higher overall structural efficiency

Biomimetic Topology Design

The distinctive ECCLOS shape is not purely cosmetic.

Its organic geometry is generated through topology optimization, allowing material to follow real structural load paths rather than relying on conventional straight-line CNC geometry.

This creates a unique technical appearance while maintaining reinforcement around critical interfaces between:

• Frame dropout

• Derailleur hanger mounting area

• Rear derailleur

The result complements the clean, lightweight performance design language of Trek Madone and Émonda platforms.

What Makes ECCLOS Different?

Ultra-Light Performance

Every gram matters on a premium race bike.

ECCLOS removes unnecessary material while preserving structural integrity, making it ideal for:

• Lightweight road builds

• Climbing-focused setups

• Aero race bikes

• Premium custom bikes

• Performance-oriented riders

Precision Rear Derailleur Alignment

A derailleur hanger directly affects shifting quality.

Precision manufacturing helps maintain:

• Correct rear derailleur positioning

• Accurate indexing

• Smooth gear changes

• Stable derailleur alignment

• Consistent drivetrain performance

Ideal for modern mechanical and electronic drivetrain systems.

Specifications

Brand: TiNE / ECCLOS
Series: CryoFusion
Product: Rear Derailleur Hanger
Compatibility: Trek Madone Gen 6 / Gen 7 / Émonda
Material: CryoFusion αβ-64 Titanium Alloy
Base Material: Premium TC4 Titanium Alloy
Design: BESO Bi-Directional Topology Optimization
Structure: Biomimetic / Topology-Optimized
Manufacturing: Precision Machining
Application: High-Performance Road Cycling

Available Colors

• Titanium

• Gold

• Blue

• Green

• Purple

• Black

• Rainbow

• Candy Oil Slick

Package Includes

• 1 × TiNE ECCLOS CryoFusion Titanium Rear Derailleur Hanger

Why Riders Choose TiNE ECCLOS

• CryoFusion αβ-64 titanium technology

• Developed for Trek Madone / Émonda platforms

• BESO topology-optimized structure

• Ultra-lightweight construction

• Exceptional strength-to-weight ratio

• Excellent fatigue resistance

• Excellent corrosion resistance

• Precision rear derailleur alignment

• Premium biomimetic aesthetics

• Ideal for high-end road bike builds

Installation Notes

Professional installation is recommended.

Before installation:

1. Remove the original derailleur hanger.

2. Clean the rear dropout contact surfaces.

3. Compare the TiNE ECCLOS hanger with the original component.

4. Confirm all mounting points and dimensions.

5. Install according to Trek’s recommended torque specifications.

6. Check derailleur alignment and indexing before riding.

Do not force installation if the hanger does not match the original component.

Important Compatibility Notice

This product is designed for selected Trek Madone Gen 6 / Gen 7 / Émonda frames.

Due to differences between frame generations, production batches, and drivetrain configurations, please compare the product with your OEM hanger before installation.

If you are unsure about compatibility, please send us:

• Exact bike model

• Model year

• Frame generation

• Clear photo of the original derailleur hanger

We can help confirm compatibility before shipment.

About Color Variations

Product photos are intended to represent the actual finish as accurately as possible.

However, slight color variations may occur due to:

• Lighting

• Viewing angle

• Screen settings

• Titanium coloring process

Rainbow, Candy Oil Slick, Blue, and other colored titanium finishes may naturally vary from piece to piece, making each component unique.

Controllo di compatibilità: a causa della complessità dei modelli e dei lotti dei componenti OEM (Original Equipment Manufacturer), potrebbero verificarsi casi in cui questo prodotto non è compatibile.

Dopo aver ricevuto il prodotto, confrontarlo con le specifiche OEM per garantirne la compatibilità prima dell'installazione.

Specifiche di coppia: installare questo prodotto rispettando rigorosamente i valori di coppia specificati nel manuale dei pezzi OEM. Problemi di installazione: se si riscontrano discrepanze con le specifiche OEM o si incontrano difficoltà nella fase iniziale dell'installazione, fermarsi immediatamente e contattare il servizio clienti per assistenza con resi o cambi.

Nessuna installazione forzata: non forzare l'installazione in nessuna circostanza. Responsabilità: eventuali danni derivanti dall'installazione forzata o da modifiche non autorizzate di questo prodotto (o dei suoi componenti) saranno di esclusiva responsabilità dell'acquirente.

Tutti i prodotti sono fotografati per rappresentare fedelmente i colori che vedrete al momento della ricezione.

A causa delle differenze di illuminazione, angolazione o impostazioni dello schermo, potrebbero verificarsi lievi variazioni di colore.

Il prodotto effettivo deve essere considerato lo standard. Per i prodotti "colorati" e "blu", il processo di colorazione può causare una distribuzione non uniforme del colore, rendendo ogni prodotto unico.
