TiNE Ultralight Seat Clamp Kit for Pinarello F-Series / 2025 Models 22.1g – Carbon Base + Titanium Bolts
TiNE Ultralight Seat Clamp Kit for Pinarello F-Series / 2025 Models 22.1g – Carbon Base + Titanium Bolts
TiNE Ultralight Seat Clamp Kit for Pinarello F-Series / 2025 Models 22.1g – Carbon Base + Titanium Bolts
TiNE Ultralight Seat Clamp Kit for Pinarello F-Series / 2025 Models 22.1g – Carbon Base + Titanium Bolts
TiNE Ultralight Seat Clamp Kit for Pinarello F-Series / 2025 Models 22.1g – Carbon Base + Titanium Bolts
TiNE Ultralight Seat Clamp Kit for Pinarello F-Series / 2025 Models 22.1g – Carbon Base + Titanium Bolts

TiNE Ultralight Seat Clamp Kit for Pinarello F-Series / 2025 Models 22.1g – Carbon Base + Titanium Bolts

$109.99
Applicable Models:Pinarello-specific（Black leveling clamp head）
Bolt Color:Black
Cantidad:

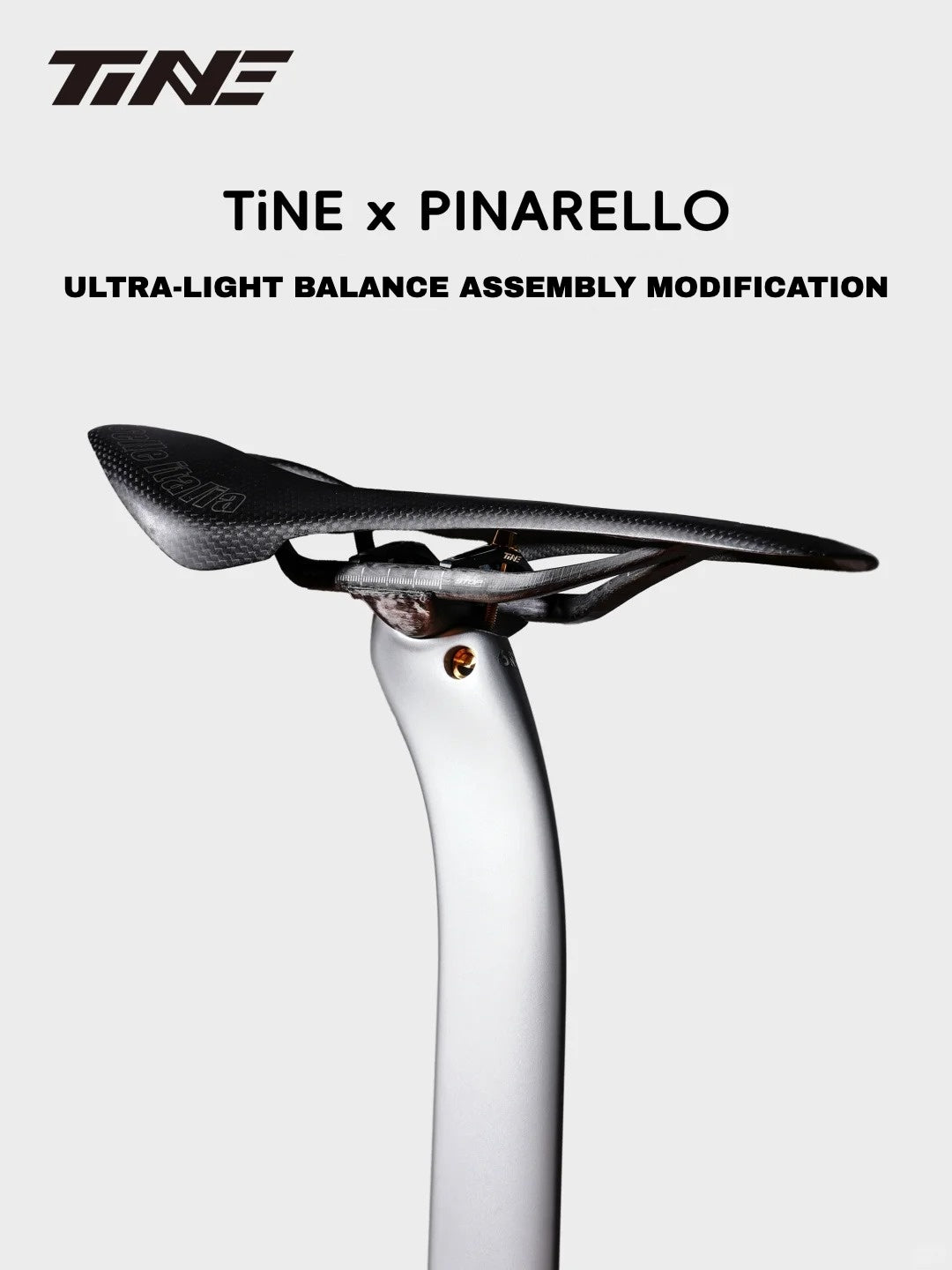

Upgrade your Pinarello ride with the TiNE Ultra-Lightweight Seat Clamp Kit, specially engineered for F-Series and the latest 2025 Pinarello seatpost systems.
Crafted for elite cyclists who demand precision, low weight, and compatibility with premium carbon seatposts.

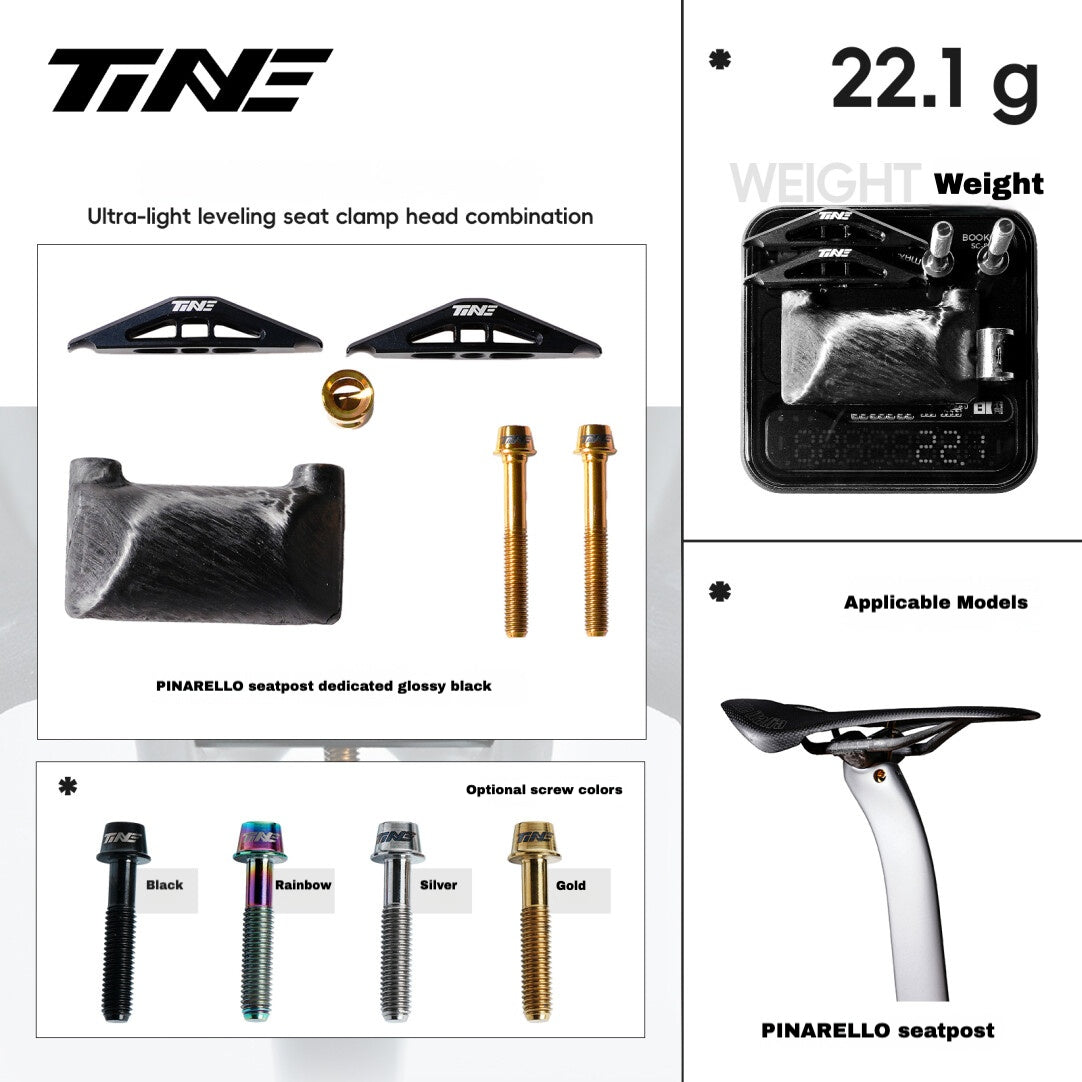

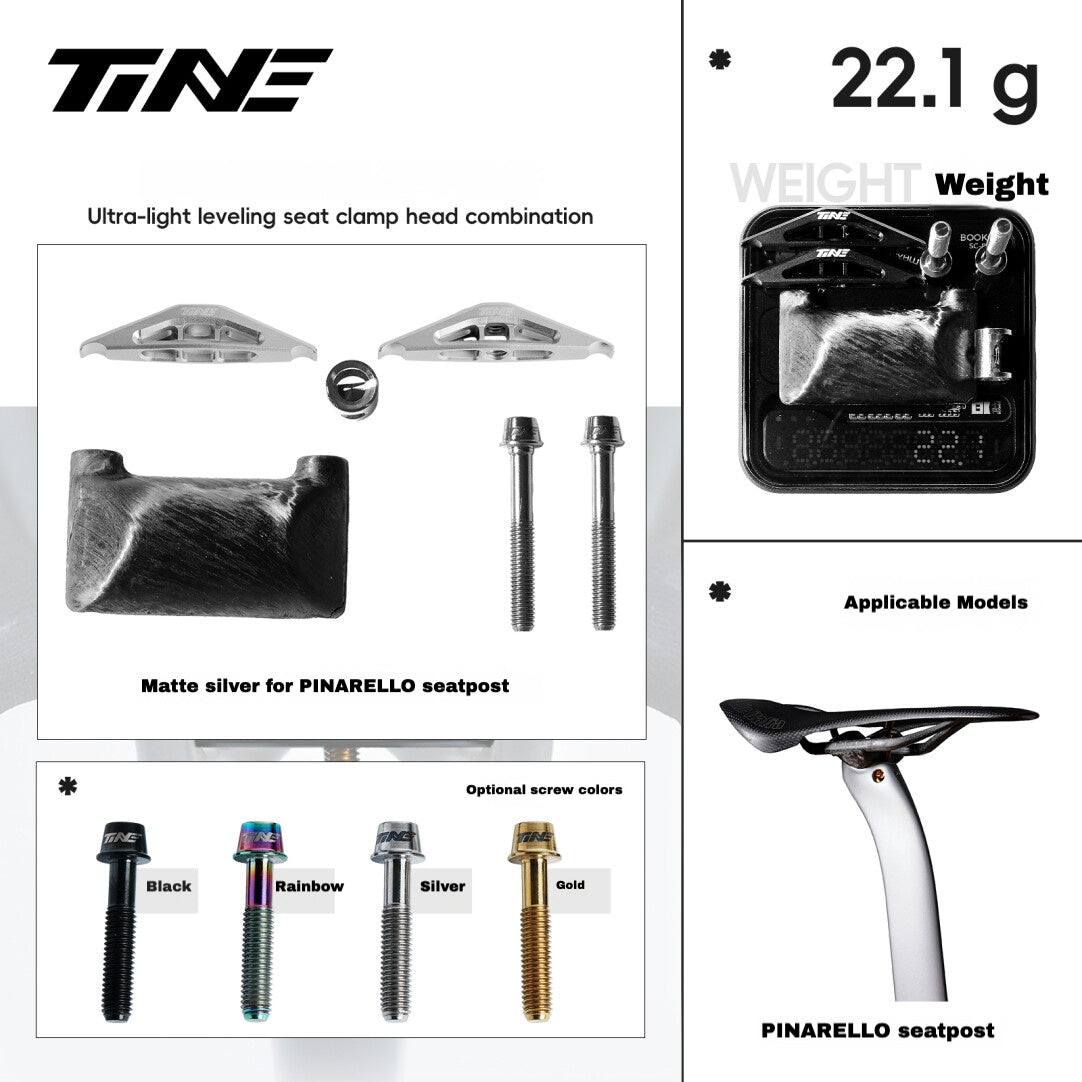

What’s Included:
✔ 1x Carbon Fiber Saddle Base (Hand-polished)

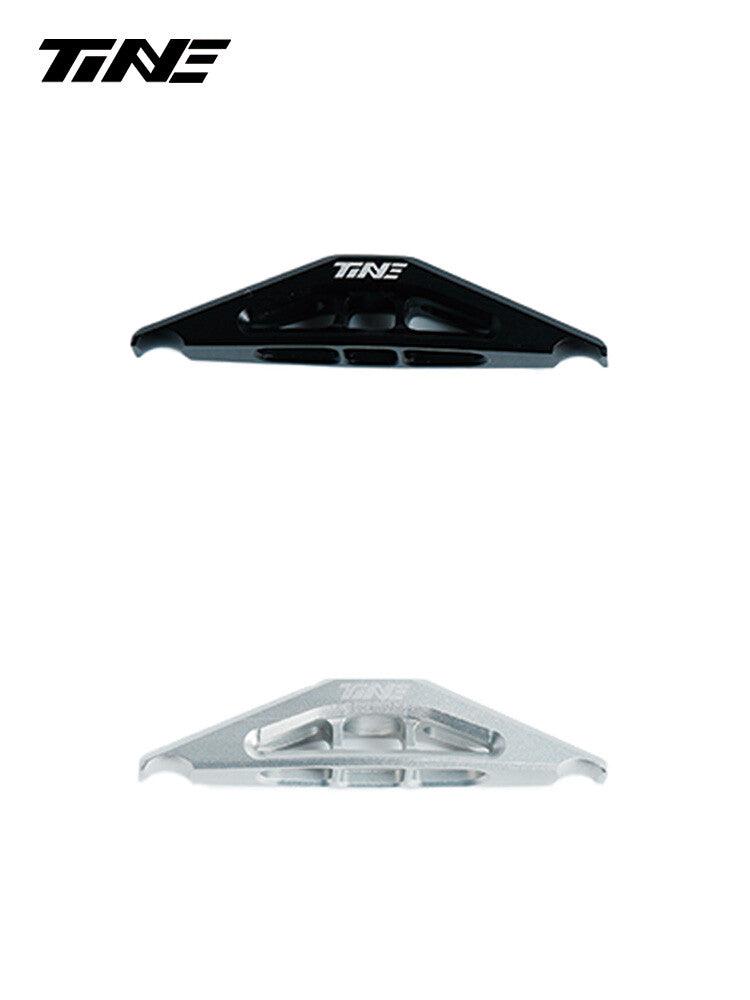

✔ 2x CNC-Machined TiNE Clamp Heads
✔ 2x Grade 5 Titanium Bolts (Color Optional)
✔ 1x Titanium Alloy Round Nut

Key Features:

  • 🌈 Optional colors: Black / Silver / Rainbow / Gold

  • ⚖️ Total weight: 22.1g (±1g)

  • 💎 CNC anodized finish for durability and style

  • 🔩 Precision fit with original Pinarello seatpost curvature

  • 💪 Stronger structure with aerospace-grade TC4 titanium bolts

  • 🚴♂️ Compatible with Pinarello F-Series, F5, F7, F9, and new 2025 frames

📌 Instructions for Use

🔧 Required Tools

  • Torque wrench (3.5NM–4NM)

  • M4 hex key

🧴 Thread Treatment

  • Apply medium-strength thread locker to screw threads before installation.

  • This enhances fastening strength and prevents loosening.

⚙️ Angle Adjustment

  • Insert the hex key into the groove to align the assembly.

  • Do not apply torque yet.

  • Adjust the screw until the seatpost reaches the desired angle.

🔒 Angle Locking

  • After adjustment, use a torque wrench to tighten the rear screws (3.5NM–4NM).

  • Ensure the seatpost is firmly secured.

✅ Tightening Check

  • Confirm all screws are correctly installed and tightened.

  • Prevent loosening during riding.

⚖️ Weight Limit

  • Maximum rider weight: 90KG.

  • Do not exceed this limit for safety.

🔍 Daily Inspection

  • Regularly check screw tightness and confirm the seatpost is within the 90KG load capacity.

⚠️ Caution

  • Exceeding the maximum weight may cause product damage or safety risks.
