Product Description

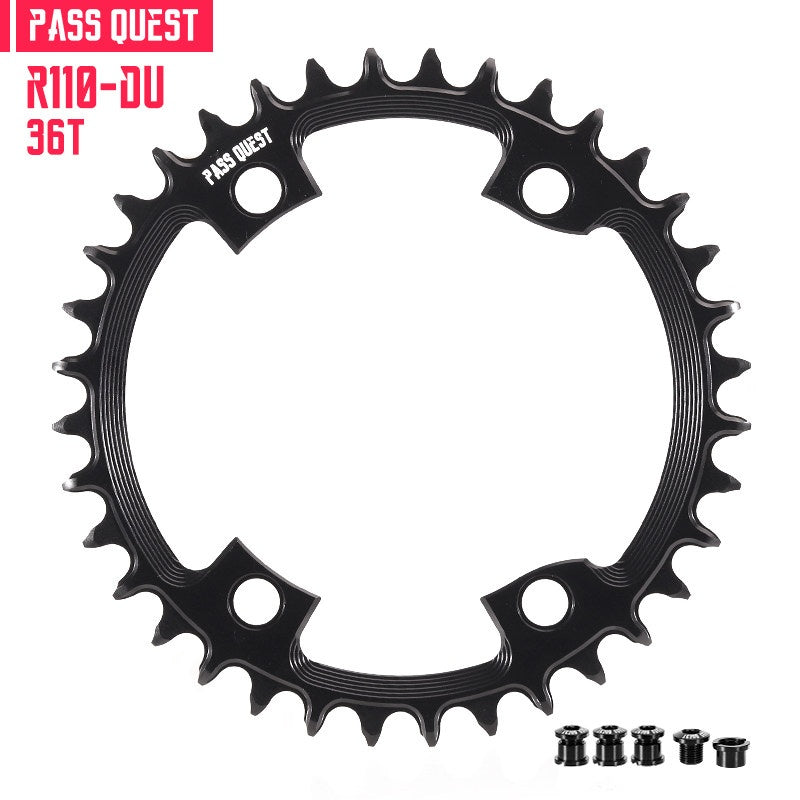

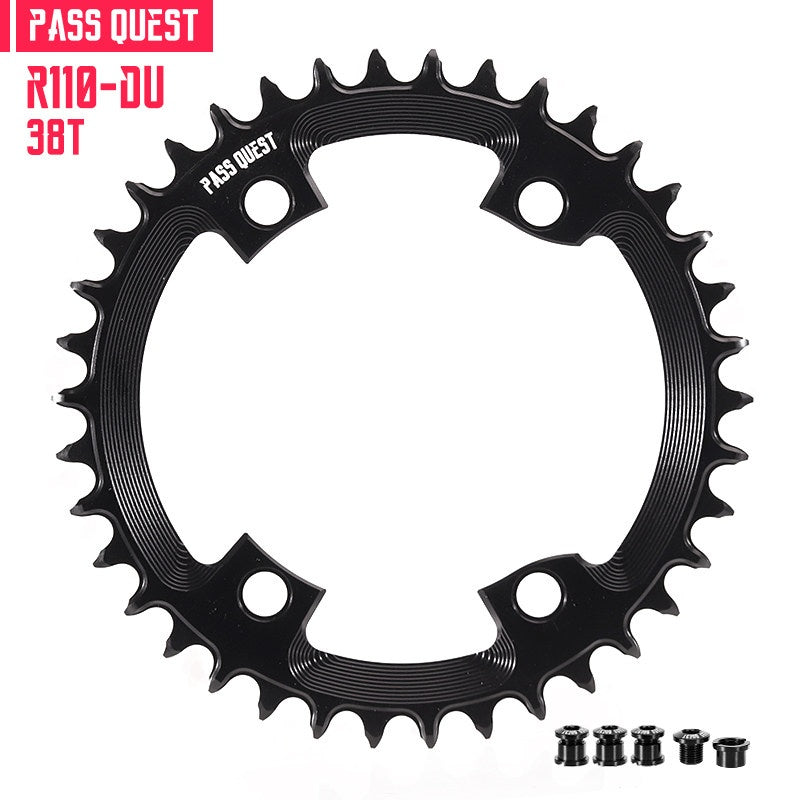

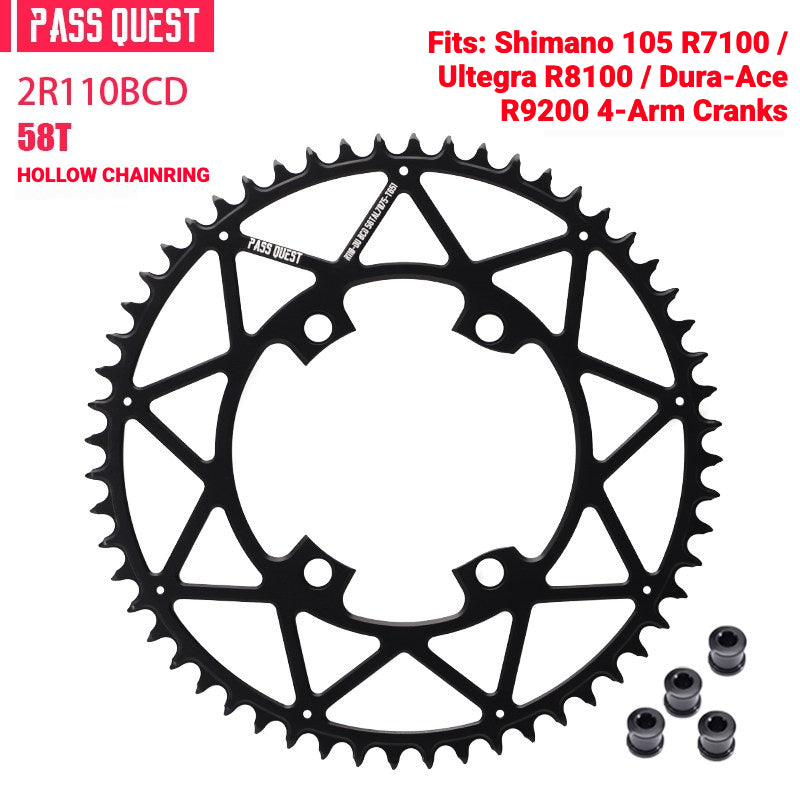

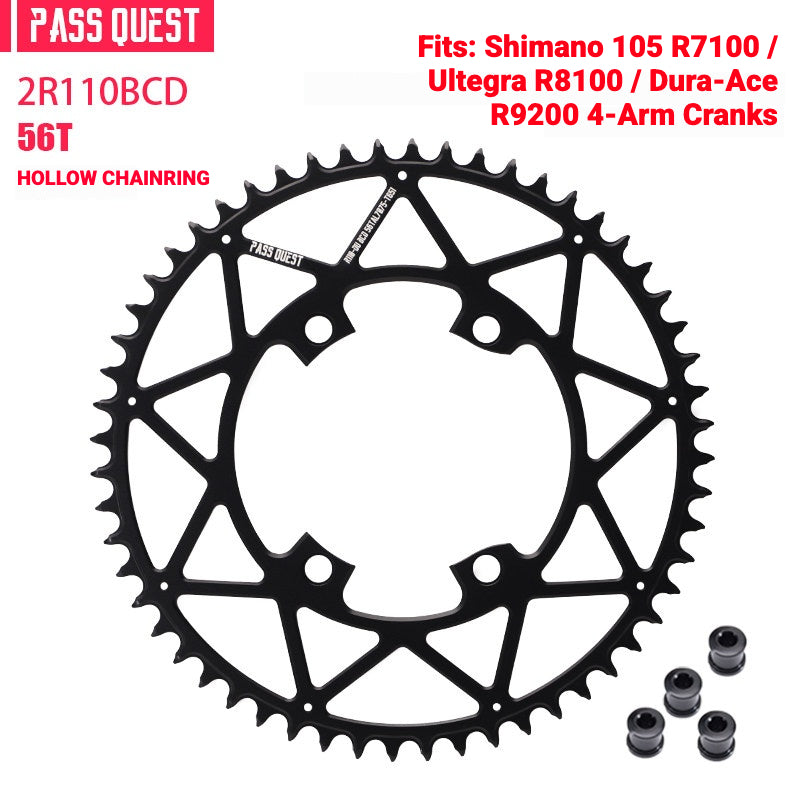

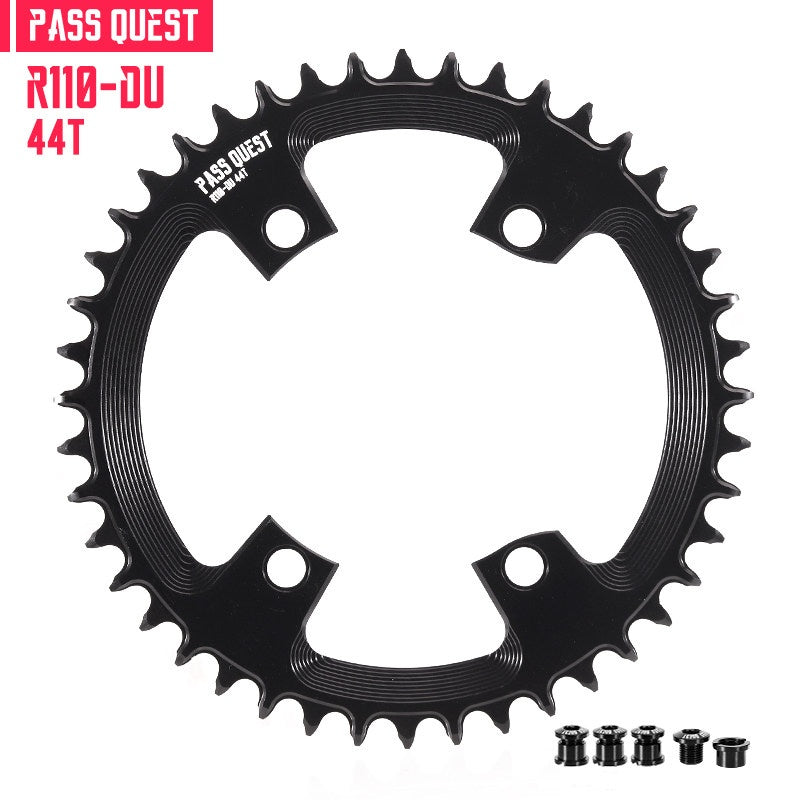

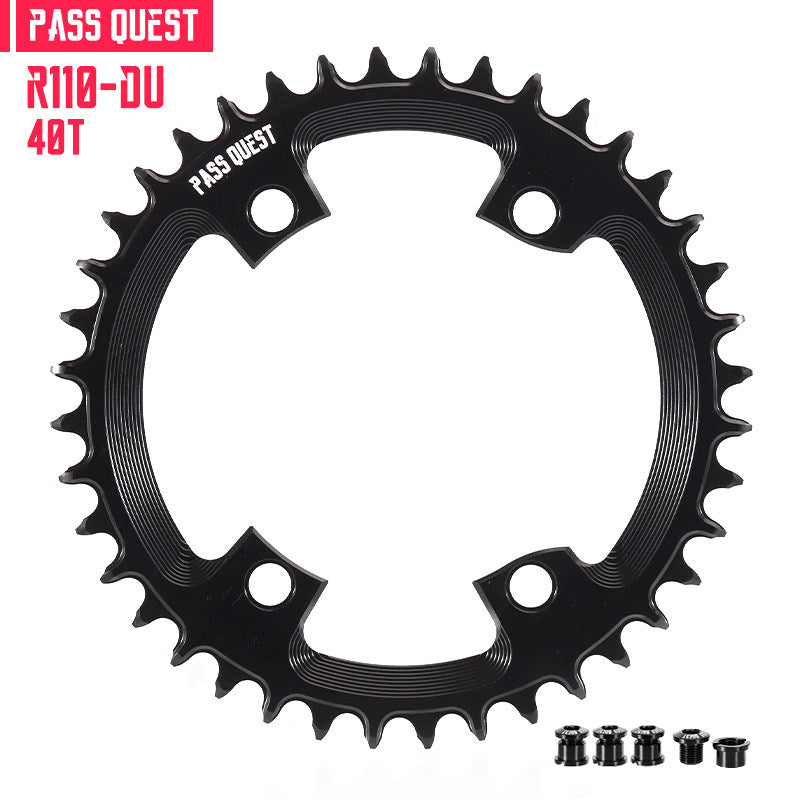

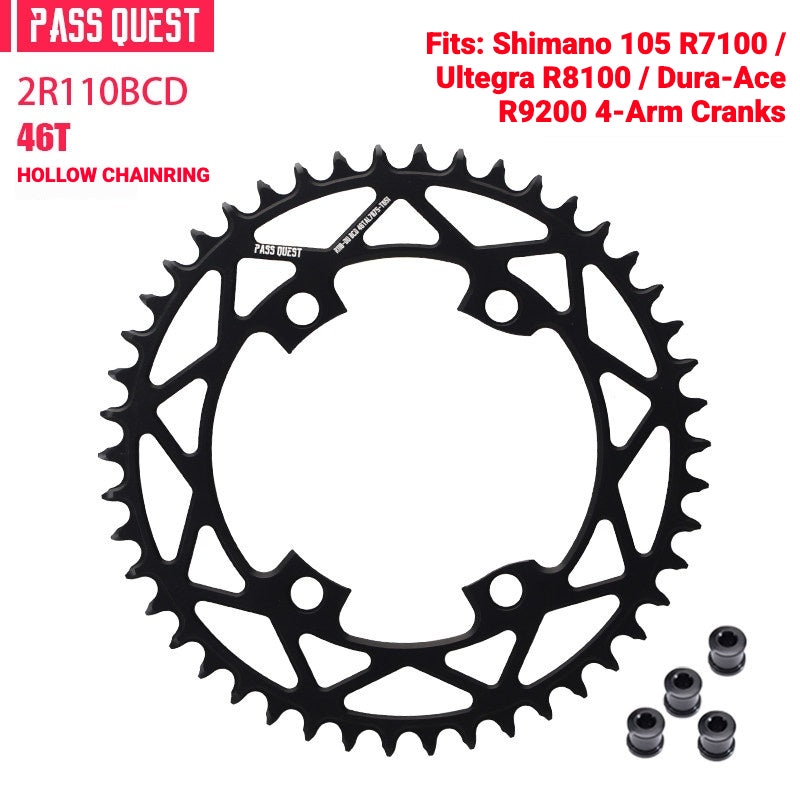

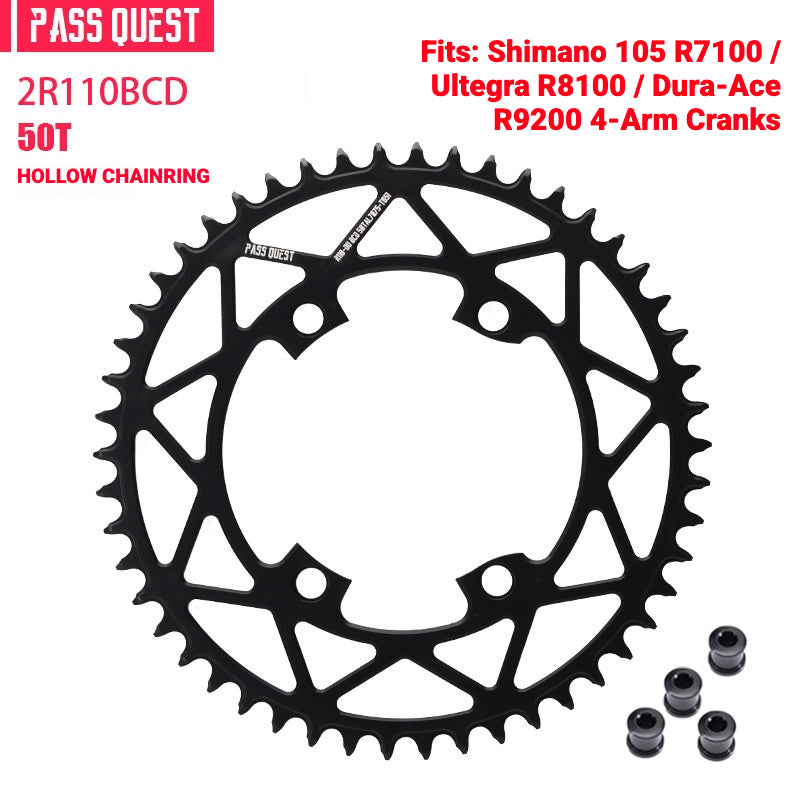

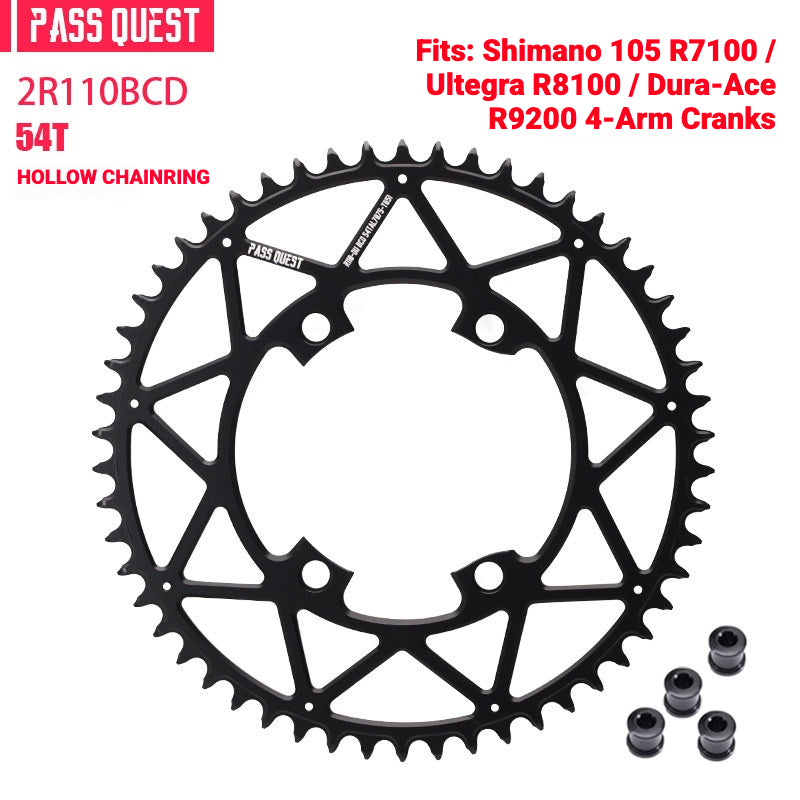

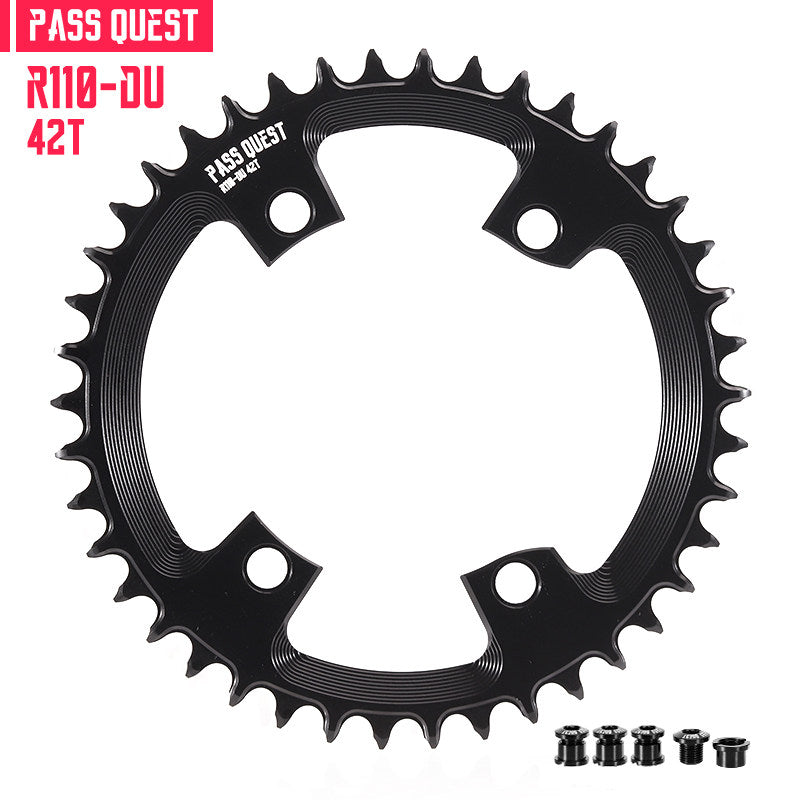

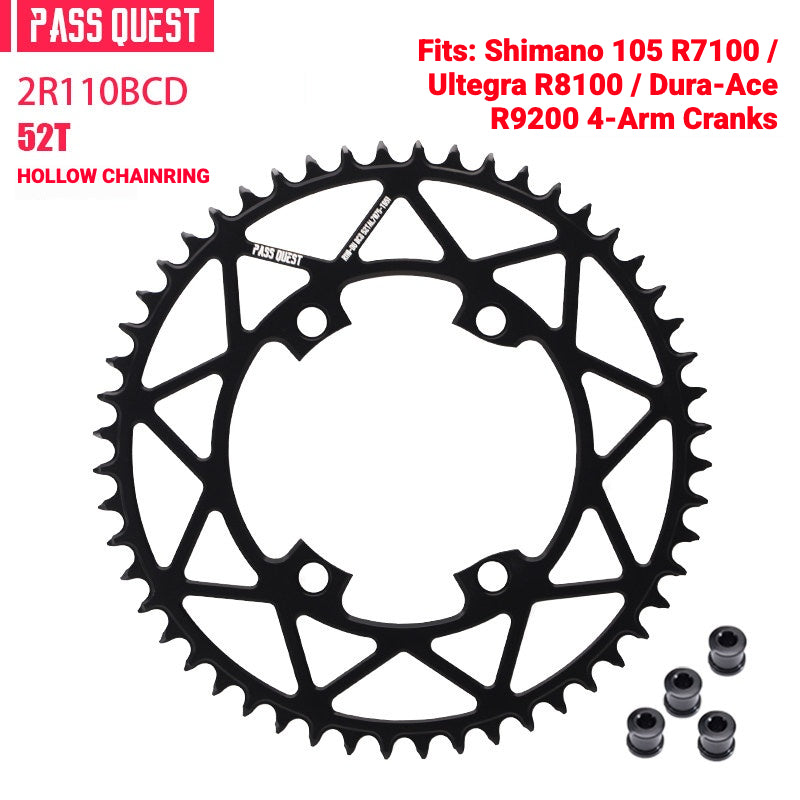

PASS QUEST 110BCD Narrow-Wide 1x Road Chainring

The PASS QUEST 110BCD Narrow-Wide Chainring is designed specifically for compatible Shimano R7100, R8100 and R9200 4-arm road cranksets.

CNC-machined from high-strength 7075-T651 aluminum alloy, it combines a lightweight open structure with an extended narrow-wide tooth profile for improved chain retention, rigidity and efficient power transfer.

Available from 36T to 58T, making it suitable for lightweight 1x road, climbing, racing and custom drivetrain builds.

Designed for Shimano 12-Speed Road Cranks

Designed for compatible:

• Shimano 105 FC-R7100
• Shimano Ultegra FC-R8100
• Shimano Dura-Ace FC-R9200

This version is shaped specifically around the newer-generation Shimano 4-arm crank profile.

Important Compatibility Notice

Shimano 110BCD 4-arm cranksets have gone through several generations.

110BCD does not mean all Shimano 4-arm chainrings are interchangeable.

Different generations use different mounting profiles:

FC-5800 / FC-6800
Earlier 4-arm profile without the newer curved relief sections.

FC-R7000 / FC-R8000 / FC-R9100
Upper-right mounting area uses a different curved profile.

FC-R7100 / FC-R8100 / FC-R9200
Upper-right and lower-right mounting areas use the newer curved profile.

This product is designed for the R7100 / R8100 / R9200 generation.

Please confirm your exact crank model before ordering.

7075-T651 CNC Aluminum

The chainring is CNC-machined from 7075-T651 aluminum alloy, providing an excellent combination of:

• High strength
• High rigidity
• Low weight
• Impact resistance
• Wear resistance
• Long-term durability

The open CNC structure removes unnecessary material while maintaining structural support under pedaling load.

Lightweight Open Structure

The chainring uses a carefully optimized hollow structure rather than simply removing material.

This helps distribute pedaling forces across the chainring while maintaining:

• Structural stability
• Rigidity
• Durability
• Low overall weight

The sculpted design also gives the chainring a distinctive performance-oriented appearance.

Extended 8.5mm Narrow-Wide Teeth

The tooth height is approximately:

8.5mm

The extended tooth profile provides deeper chain engagement to help reduce chain drop caused by:

• Road vibration
• Chain movement
• High cadence
• Sprinting
• Hard acceleration

The narrow-wide profile improves chain retention for 1x road drivetrain setups.

1x Road Drivetrain Design

Designed for riders converting compatible Shimano road cranks to a clean single-chainring / 1x drivetrain.

Suitable for:

• Road bikes
• Race builds
• Climbing setups
• Training bikes
• Lightweight builds
• Custom drivetrain configurations

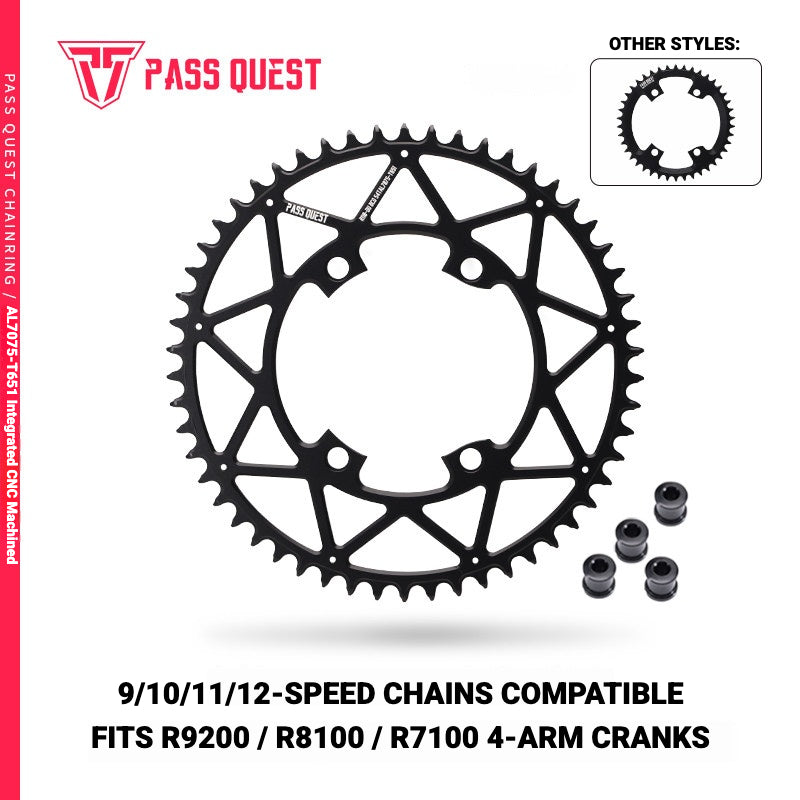

Chain Compatibility

Compatible with standard:

9 / 10 / 11 / 12-Speed Chains

Please confirm your chain and drivetrain combination before ordering.

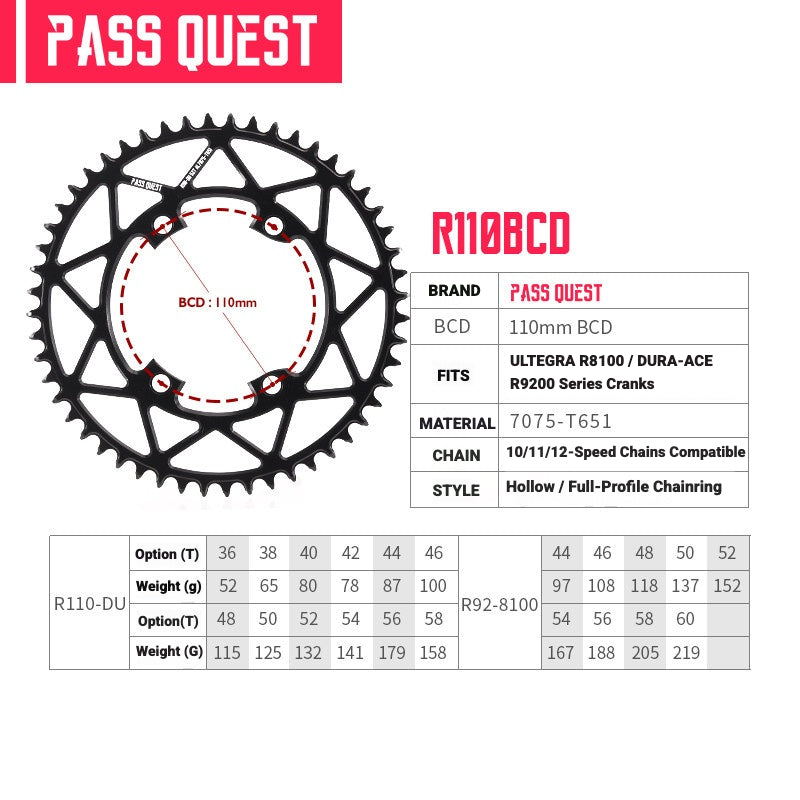

Specifications

Size & Weight

Weight tolerance: approximately ±5% depending on measurement method and production variation.

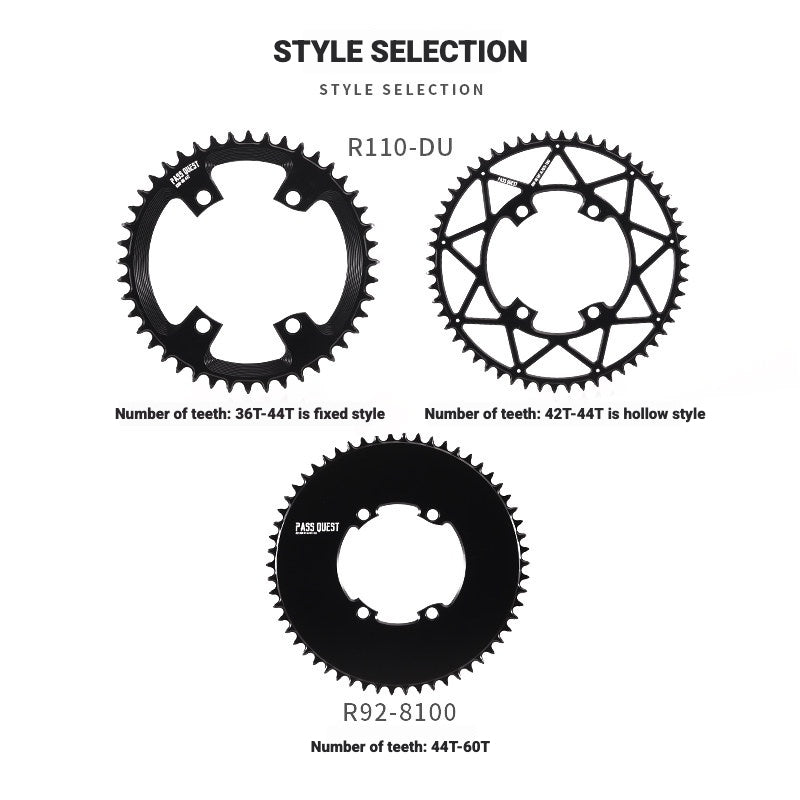

Available Sizes

36T, 38T, 40T, 42T, 44T, 46T, 48T, 50T, 52T, 54T, 56T, 58T

Color

Black

Optional Matching Crank Covers

Matching decorative crank covers can be used for a cleaner, more integrated appearance.

They also help reduce dirt entering the interface area between the crank and chainring.

Decorative covers are not included unless specifically selected or stated.

Why Choose PASS QUEST?

The PASS QUEST R7100 / R8100 / R9200 chainring combines:

• 110BCD Shimano 4-arm compatibility
• 7075-T651 aluminum
• CNC-machined lightweight structure
• 8.5mm extended narrow-wide teeth
• Improved chain retention
• High rigidity
• 36T–58T gearing options
• Clean 1x road drivetrain setup

It is designed for riders who want to simplify their drivetrain while maintaining low weight, high rigidity and reliable chain retention.

Package Includes

PASS QUEST 110BCD Narrow-Wide Chainring ×1

Crankset, chain, crank covers, chainring bolts and other accessories are not included unless otherwise stated.

Installation Note

Before ordering, please confirm:

• Shimano crank model
• R7100 / R8100 / R9200 generation
• 110BCD 4-arm interface
• Required tooth count
• Chain compatibility

Professional installation is recommended.

Follow Shimano’s recommended torque specifications for the corresponding crankset and mounting hardware.

Verificación de compatibilidad: debido a la complejidad de los modelos y lotes de piezas del fabricante de equipos originales (OEM), puede haber casos en los que este producto sea incompatible.

Al recibir este producto, compárelo con las especificaciones OEM para garantizar la compatibilidad antes de la instalación.

Especificaciones de torque: Instale este producto estrictamente de acuerdo con los valores de torque especificados en el manual de piezas OEM. Problemas de instalación: Si encuentra alguna discrepancia con las especificaciones OEM o enfrenta dificultades en la etapa inicial de instalación, deténgase inmediatamente y comuníquese con el servicio al cliente para obtener ayuda con devoluciones o cambios.

Sin instalación forzada: No fuerce la instalación bajo ninguna circunstancia. Responsabilidad: Cualquier daño resultante de una instalación forzada o modificaciones no autorizadas de este producto (o sus componentes) será responsabilidad exclusiva del comprador.

Todos los productos están fotografiados para representar con precisión los colores que verá al recibirlos.

Debido a diferencias de iluminación, ángulos o configuraciones de pantalla, pueden ocurrir ligeras variaciones de color.

El producto real debe considerarse el estándar. Para los productos "coloreados" y "azules", el proceso de coloración puede generar una distribución desigual del color, lo que hace que cada producto sea único.
